In fire protection systems, fire pumps are designed to deliver reliable water supply under emergency conditions. However, ensuring a pump performs effectively across different operating scenarios requires more than just selecting the rated flow. One critical but often misunderstood parameter is the Minimum Continuous Rated Flow (MCR Flow).
Understanding this concept is essential for engineers, contractors, and facility owners involved in fire pump system design, installation, and maintenance. It directly impacts system reliability, pump lifespan, and compliance with standards such as National Fire Protection Association guidelines.
This article explains what fire pump minimum continuous rated flow is, why it matters, how it is defined, and how to apply it correctly in real-world fire protection systems.
What Is Fire Pump Minimum Continuous Rated Flow?
Minimum Continuous Rated Flow (MCR Flow) refers to the lowest flow rate at which a fire pump can safely operate continuously without overheating, damage, or performance instability.
Unlike normal operating flow, which is determined by system demand, MCR flow defines the minimum safe operating limit for the pump.
At flow rates below this threshold, several issues can occur:
-
Excessive heat buildup inside the pump
-
Recirculation of water within the casing
-
Mechanical stress and vibration
-
Reduced lubrication and cooling of internal components
In simple terms, if a fire pump operates below its minimum continuous rated flow for extended periods, it may suffer from premature failure or reduced reliability during a fire event.
Why Is MCR Flow Important?
1. Prevents Overheating
When flow is too low, the energy imparted by the pump is not effectively transferred to moving water. This causes heat to accumulate inside the pump casing, potentially damaging seals, bearings, and other components.
2. Ensures Mechanical Stability
Low flow conditions can create unstable hydraulic forces, leading to vibration and shaft deflection. Over time, this reduces the pump’s lifespan and increases maintenance requirements.
3. Maintains System Reliability
Fire pumps must operate reliably during emergencies. Operating outside the recommended range increases the risk of failure when the system is needed most.
4. Compliance with Standards
Standards such as NFPA 20 specify requirements for fire pump performance, including safe operating ranges. MCR flow is part of ensuring compliance with these guidelines.
MCR Flow vs Rated Flow
It is important to distinguish between rated flow and minimum continuous rated flow:
-
Rated Flow: The flow at which the pump is designed to operate under normal conditions (e.g., 500 GPM, 1000 GPM).
-
Minimum Continuous Rated Flow: The lowest flow at which the pump can operate continuously without damage.
Typically, MCR flow is expressed as a percentage of the rated flow, often ranging from 10% to 30%, depending on the pump design.
For example:
-
A 1000 GPM fire pump may have an MCR flow of 100–300 GPM.
Operating below this range is considered unsafe for continuous operation.
MCR Flow in NFPA 20 Requirements
The standard NFPA 20 does not explicitly define a universal MCR percentage for all pumps. However, it requires that:
-
Fire pumps must operate safely at churn (zero flow) for a limited time
-
Pumps must be provided with a circulation relief valve
-
System design must prevent overheating during low-flow conditions
Circulation Relief Valve
To address low-flow operation, NFPA 20 requires a circulation relief valve on most fire pump installations. This valve:
-
Opens automatically when pressure rises
-
Allows a small amount of water to circulate
-
Prevents overheating during churn or low demand
The relief flow is typically small (often around 5–10 GPM), which is not the same as MCR flow, but it helps protect the pump during short-duration low-flow conditions.
Fire Pump Performance Curve and MCR Flow
To understand MCR flow, it is helpful to look at a fire pump performance curve.
A typical curve includes:
-
Shutoff head (zero flow)
-
Rated flow point
-
150% flow point
While standards focus on rated and maximum flows, the left side of the curve (low flow region) is where MCR flow becomes critical.
Operating too close to the shutoff point can lead to:
-
Internal recirculation
-
Heat buildup
-
Reduced efficiency
Manufacturers typically define the minimum allowable continuous flow point on or near the performance curve.
Differences by Pump Type
Different types of fire pumps have different MCR flow characteristics.
1. Horizontal Split Case Pumps
-
Generally have stable performance
-
MCR flow is typically around 20–30% of rated flow
-
Suitable for large flow applications

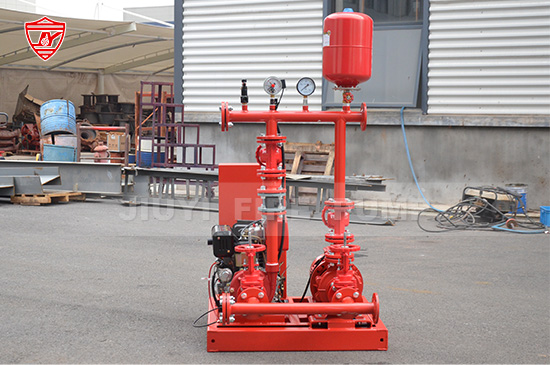

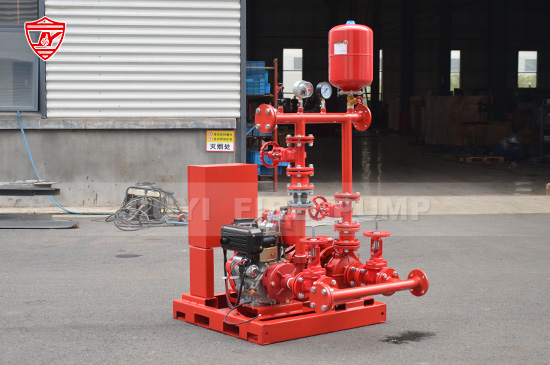

2. End Suction Pumps
-
More sensitive to low-flow operation
-
MCR flow may be higher compared to split case pumps
-
Common in smaller systems
3. Vertical Turbine Pumps
-
Often used for water sources like wells or tanks
-
Require minimum submergence and flow for cooling
-
MCR flow depends on bowl design and configuration
For vertical turbine fire pumps, ensuring proper flow is especially critical because cooling depends on the surrounding water movement.
Practical Design Considerations
When designing a fire pump system, engineers must ensure the pump will not operate below its MCR flow for extended periods.
1. Avoid Oversizing the Pump
Oversized pumps are one of the most common causes of low-flow operation.
If system demand is significantly lower than pump capacity:
-
The pump may operate near shutoff
-
Heat and mechanical issues may occur
2. Provide a Test Header or Flow Test System
A test header allows operators to:
-
Run the pump at rated flow
-
Verify performance
-
Avoid prolonged low-flow operation
3. Use Recirculation Lines
In some cases, a recirculation line back to the water source can maintain minimum flow during operation.
4. Consider System Demand Variability
Fire protection systems may include:
-
Sprinklers
-
Hydrants
-
Standpipes
Ensure that the minimum expected demand does not fall below the pump’s MCR flow.
MCR Flow During Testing
Fire pump testing is essential for verifying performance, and MCR flow plays a role in testing procedures.
Weekly Churn Test
During weekly testing, pumps are often run at churn (zero flow). This is acceptable because:
-
The duration is short
-
Circulation relief valves prevent overheating
Annual Flow Test
During annual tests, the pump is operated at:
-
100% rated flow
-
150% rated flow
These tests ensure the pump operates within its full performance range, including above the MCR threshold.
Common Mistakes to Avoid
1. Ignoring Manufacturer Data
Each pump has its own MCR flow specification. Relying on generic values can lead to improper design.
2. Assuming Relief Valves Solve Everything
Circulation relief valves protect against short-term overheating but do not replace proper flow design.
3. Oversizing for “Future Expansion”
While planning for future demand is important, excessive oversizing increases the risk of operating below MCR flow.
4. Poor System Balancing
Improper valve settings or system design can restrict flow, pushing the pump into unsafe operating regions.
Role of UL Listed Fire Pumps
Using certified equipment helps ensure reliable performance. Standards from organizations like Underwriters Laboratories ensure that fire pumps meet strict testing and performance criteria.
UL listed fire pumps are tested for:
-
Performance curves
-
Mechanical reliability
-
Safety under various operating conditions
However, system design still determines whether the pump operates within its safe flow range.
How Manufacturers Define MCR Flow
As a fire pump manufacturer, defining MCR flow involves:
-
Hydraulic analysis of pump design
-
Thermal performance testing
-
Material and bearing limitations
-
Compliance with industry standards
Manufacturers may provide:
-
Minimum continuous flow values
-
Recommended operating ranges
-
Performance curves
These data points are essential for engineers to design compliant and reliable systems.
Conclusion
Minimum Continuous Rated Flow is a critical parameter in fire pump operation that ensures the pump can function safely and reliably under low-flow conditions. While often overlooked, it plays a key role in preventing overheating, mechanical damage, and system failure.
Understanding and applying MCR flow correctly requires:
-
Careful pump selection
-
Proper system design
-
Compliance with standards such as NFPA 20
-
Attention to manufacturer specifications
For fire pump manufacturers, contractors, and engineers, incorporating MCR flow considerations into every project is essential to delivering safe, efficient, and long-lasting fire protection systems.
By ensuring that your fire pump operates within its defined performance range, you not only protect the equipment but also ensure that the system will perform when it matters most—during a fire emergency.
