Fire pump flow is one of the most important parameters used to evaluate and select a fire pump for a fire protection system. It describes the volume of water a fire pump can deliver over a specific period, usually expressed in gallons per minute (GPM) or liters per minute (L/min).
For engineers, contractors, and fire protection professionals, understanding fire pump flow is essential for selecting the correct pump, evaluating hydraulic performance, and ensuring that the fire protection system can provide the required water supply during a fire emergency.
However, fire pump flow should not be considered independently from pressure. A properly selected fire pump must provide the required flow at the required pressure and under the operating conditions specified for the project.

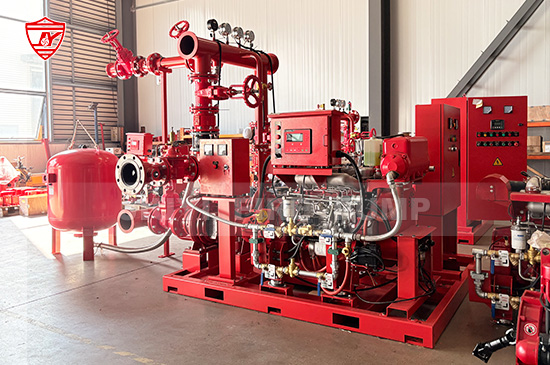

.jpg)
Fire pump flow refers to the quantity of water that a fire pump delivers through the fire protection system within a given period of time.
The most common unit used in many international fire protection projects is gallons per minute, or GPM. Other projects may use liters per minute, cubic meters per hour, or other flow units.
For example, a fire pump may have a rated capacity of:
A pump rated at 1,000 GPM is designed to deliver approximately 1,000 gallons of water per minute at its rated operating condition.
The rated flow does not mean that the pump can only operate at exactly that flow. A centrifugal fire pump can normally operate across a range of flow conditions, and its pressure changes as the flow changes. This relationship is represented by the pump performance curve.
Therefore, when discussing fire pump flow, it is important to consider both flow and pressure.
The primary purpose of a fire pump is to provide adequate water flow and pressure to a fire protection system when the available water supply cannot meet the system demand by itself.
Fire protection systems may include sprinklers, hydrants, hose stations, standpipes, deluge systems, water spray systems, or other water-based fire suppression equipment.
Each application can have different hydraulic requirements.
If the fire pump flow is too low, the system may not receive enough water to supply the required fire protection equipment. If the pump is significantly oversized, the system may experience unnecessary pressure, higher equipment costs, and additional challenges during system design and operation.
This is why fire pump selection should begin with the actual hydraulic requirements of the project rather than simply selecting the largest available pump.
Flow and pressure are closely related but represent different characteristics.
Flow describes how much water the pump delivers.
Pressure describes the force available to move that water through the piping system and provide the required pressure at the points of use.
For example, a fire protection system may require a fire pump to provide 1,000 GPM at a specified pressure. The pump must be capable of meeting both requirements simultaneously.
A pump that can deliver 1,000 GPM but cannot provide sufficient pressure may not meet the system requirements. Similarly, a pump that produces very high pressure but cannot deliver the required flow is also unsuitable.
The relationship between flow and pressure is therefore fundamental to fire pump selection.
Rated flow is the flow capacity at which a fire pump is designated and evaluated.
For example, if a pump is identified as a 750 GPM fire pump, 750 GPM is its rated flow.
The rated flow provides a standard reference point for evaluating the pump's hydraulic performance. However, the actual operating point of the pump depends on the system demand and the pump's performance curve.
A fire pump may operate at flows below or above its rated flow within applicable design and testing requirements.
When selecting a pump, engineers should therefore review the complete certified or manufacturer-provided performance curve rather than relying only on the rated GPM shown in the pump name or model.
Fire pump flow can be measured using appropriate flow measurement equipment installed as part of the fire pump testing arrangement.
During a performance test, water is discharged through a controlled test arrangement while flow and pressure are measured.
Typical test points may include:
The measured results are then compared with the pump's required performance.
The purpose of testing is to verify that the pump can provide the expected hydraulic performance and that the complete pump assembly operates properly.
For manufacturers, comprehensive testing is particularly important because the pump, driver, controller, and associated components must work together as an integrated fire pump system.
Fire pump flow is not normally selected using a single universal formula.
Instead, the required flow is determined from the hydraulic demand of the fire protection system.
For a sprinkler system, for example, the required water demand can depend on factors such as the hazard classification, design density, design area, sprinkler characteristics, hose stream allowance, and piping configuration.
For other systems, such as hydrant or standpipe systems, different hydraulic criteria may apply.
The basic relationship between flow, area, and application density can be expressed as:
Flow = Density × Area
However, this is only a simplified starting point. The final system demand can also include additional water allowances and pressure losses.
After determining the required system flow, engineers must calculate the pressure required at the pump discharge. This includes losses through piping, fittings, valves, elevation changes, and other components.
The final pump selection therefore needs to satisfy both the required flow rate and discharge pressure.
The pump performance curve is one of the most important documents for evaluating fire pump performance.
A typical centrifugal pump curve shows the relationship between pump flow and discharge pressure or head.
As flow increases, the pressure or head produced by a centrifugal pump generally decreases.
This means that a pump does not produce the same pressure at every flow rate.
For example, a pump might produce a relatively high pressure at churn but a lower pressure at its rated flow. At a higher flow rate, the available pressure may decrease further.
The system operating point occurs where the pump performance characteristics interact with the hydraulic resistance of the system.
For fire protection applications, the pump curve must be evaluated against the required system demand to confirm that the selected pump can provide adequate performance across the required operating range.
Churn flow refers to the condition in which the pump is running with little or no system flow being discharged.
It is also commonly referred to as the no-flow condition.
At churn, a centrifugal fire pump generally produces its highest discharge pressure. This pressure is important because it affects the pressure that downstream components may experience when the pump starts and the system demand is low.
Fire protection system designers therefore need to consider churn pressure when selecting equipment and evaluating the pressure rating of system components.
Churn performance is also an important point in fire pump testing and performance evaluation.
As the flow demand increases, the operating point moves along the pump performance curve.
For a typical centrifugal fire pump, increasing flow results in a reduction in the pressure or head produced by the pump.
This is why a fire pump should never be evaluated only by its maximum flow capacity.
For example, a pump advertised as capable of delivering a particular maximum flow may not provide the pressure required by the fire protection system at that flow.
The correct approach is to evaluate the pump at the actual project duty point.
The duty point is the required combination of flow and pressure at which the pump must operate to satisfy the system demand.
Fire pump sizing begins with determining the water demand of the fire protection system.
Once the required flow and pressure are established, the appropriate pump capacity can be selected.
A properly sized fire pump should provide sufficient flow and pressure without creating unnecessary problems for the system.
Oversizing can result in higher equipment and installation costs and may introduce excessive pressure into the system. Undersizing, on the other hand, may prevent the fire protection system from achieving its required hydraulic performance.
For this reason, fire pump sizing should consider:
The pump should ultimately be selected based on the complete hydraulic requirements rather than flow alone.
The available water supply is another important consideration.
A fire pump does not create an unlimited water source. It increases the pressure and helps provide the required flow from the available water supply.
Before selecting a fire pump, engineers should understand the characteristics of the water source, including available pressure, flow, suction conditions, and potential variations.
For some projects, the incoming water supply may provide sufficient flow but inadequate pressure. In other situations, both pressure and flow may be insufficient.
A properly selected fire pump can compensate for inadequate pressure and provide the required system demand, provided that the water source itself can supply the necessary volume of water.
This is particularly important when selecting pumps for large commercial buildings, industrial facilities, warehouses, high-rise buildings, and other applications with substantial fire water demand.
Fire pump manufacturers use dedicated test facilities to evaluate pump hydraulic performance.
A typical fire pump test may measure flow and pressure at several operating points. These results are compared with the expected pump performance to verify that the pump meets its design requirements.
For fire pump manufacturers, testing also helps identify potential issues involving:
A properly equipped test facility allows manufacturers to evaluate different pump sizes and configurations under controlled conditions before equipment is delivered to the project site.
For certified or listed fire pumps, testing and manufacturing controls become even more important because the equipment must satisfy the applicable certification and listing requirements.
Selecting the correct fire pump flow should follow a systematic process.
First, determine the hydraulic demand of the fire protection system.
Second, determine the required pump discharge pressure based on the system's most demanding operating condition.
Third, review available pump performance curves and identify models that can satisfy the required duty point.
Fourth, confirm that the pump, motor or diesel engine, controller, piping, valves, and other components are compatible with the selected operating conditions.
Finally, verify that the selected equipment complies with the applicable project specifications, local regulations, and required fire protection standards.
For international projects, the requirements can vary depending on the application, jurisdiction, approval requirements, and project specifications. Therefore, fire pump selection should always be based on the requirements applicable to the specific project.
.jpg)
When someone asks, "What is the fire pump flow?" the answer is not simply a number such as 500 GPM or 1,000 GPM.
Fire pump flow represents one part of the complete hydraulic performance of the pump.
The most important question is not simply how much water the pump can deliver, but whether it can deliver the required flow at the required pressure under the required operating conditions.
Understanding rated flow, pump curves, churn pressure, system demand, and the relationship between flow and pressure allows engineers and contractors to make more informed fire pump selections.
As a fire pump manufacturer, we recommend evaluating every project based on its actual hydraulic requirements and reviewing the complete pump performance curve before final equipment selection. Proper flow selection helps create a fire protection system that is appropriately designed, reliable, and capable of delivering the required water supply when it is needed.
