Water does not always remain in a liquid state under all pressure conditions. At a given temperature, water can begin to vaporize when its absolute pressure falls to or below its vapor pressure.
Inside a centrifugal fire pump, the pressure can become particularly low near the impeller eye, where water enters the rotating impeller. If the pressure is insufficient, small vapor bubbles can form. As the water moves through the impeller into higher-pressure regions, the bubbles collapse.
This is the basic mechanism of cavitation.
The relationship between the water supply and the pump's requirements is commonly evaluated using NPSH. NFPA 20 defines NPSH in relation to the absolute pressure at the pump suction and the vapor pressure of the liquid. The available suction condition must provide adequate NPSH for the pump's operating requirements.

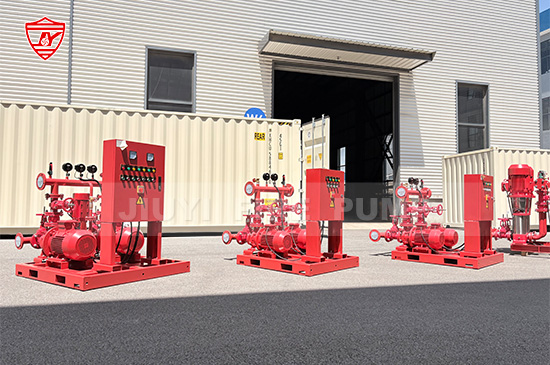

.jpg)
Several conditions can reduce the NPSH available to a fire pump:
Low water level in the suction tank
Excessive suction pipe friction losses
Undersized suction piping
Excessive flow velocity in the suction line
Blocked or restricted suction components
Excessive number of fittings or abrupt changes in direction
High water temperature
Insufficient pump submergence
Excessive elevation above the water source
Poor suction piping configuration
Vortex formation at the water intake
Operating the pump beyond its intended hydraulic conditions
Because these factors are often related to system design and installation rather than the pump itself, preventing cavitation requires cooperation between the fire pump manufacturer, system designer, contractor, and commissioning team.
NPSH stands for Net Positive Suction Head. Two concepts are especially important: NPSH available and NPSH required.
NPSH available (NPSHa) represents the suction conditions provided by the installation. It depends on factors such as water level, atmospheric pressure, water temperature, suction piping losses, and pressure at the pump inlet.
NPSH required (NPSHr) represents the minimum suction condition required by the pump at a particular operating point. It is related to the pump design, speed, and flow rate and is normally provided by the pump manufacturer through performance data.
The basic principle is straightforward: the available NPSH must be sufficient for the pump's required NPSH under the applicable operating conditions. NFPA 20 materials explain that inadequate supplied NPSH can allow water to vaporize at the pump inlet, producing bubbles that collapse inside the pump and cause noise, vibration, and potential damage.
For this reason, NPSH should be considered during fire pump selection and system design rather than only investigated after a pump develops a problem.
Cavitation can affect a fire pump in several ways.
The formation of vapor bubbles interferes with the smooth movement of water through the impeller. As cavitation becomes more severe, the pump may fail to achieve its expected flow and pressure.
For a fire protection system, this is a serious concern because the pump's purpose is to provide the water supply required by the fire protection system.
One of the most recognizable symptoms of cavitation is abnormal noise. A cavitating pump may produce a sound sometimes compared to gravel or small stones moving through the pump.
Vibration may also increase because the rapid formation and collapse of vapor bubbles creates unstable hydraulic forces.
However, noise or vibration alone does not prove that cavitation is occurring. Other mechanical or hydraulic problems can produce similar symptoms, so proper troubleshooting is necessary.
Repeated bubble collapse near the impeller can create localized pressure impacts on metal surfaces. Prolonged cavitation may result in surface erosion, pitting, and deterioration of hydraulic components.
The severity of damage depends on the operating conditions, duration, pump design, materials, and intensity of cavitation.
A fire pump is part of a life-safety system. Continuous operation under poor suction conditions can reduce equipment reliability and potentially increase maintenance requirements.
For this reason, avoiding cavitation should be treated as part of the overall reliability strategy for the fire pump system.
Fire protection professionals may encounter several warning signs when investigating possible cavitation:
Unusual noise from the pump
Increased vibration
Unexpected reduction in flow
Failure to achieve expected discharge pressure
Fluctuating pressure or unstable pump performance
Damage or pitting on the impeller
Changes in pump performance at higher flow rates
Abnormally low suction pressure
Performance deterioration when the water level becomes low
A particularly important point is that cavitation can become more noticeable as flow increases. Because pump NPSH requirements can vary with operating point, the suction conditions must be evaluated at the relevant operating conditions rather than only at one convenient test point.
Preventing cavitation begins with correct hydraulic design.
The pump should be selected according to the required flow, pressure, speed, water source, and system conditions.
A pump manufacturer's performance data should be reviewed carefully, including available information regarding NPSH requirements.
Selecting a pump solely according to rated flow and pressure without considering suction conditions can create problems later.
The water source must provide sufficient suction conditions throughout the expected operating range.
For tanks, this means considering the lowest operating water level rather than assuming that the tank will always be full.
For vertical turbine fire pumps, water level and pump submergence are especially important. NFPA 20 includes specific provisions addressing submergence and the prevention of excessive cavitation in vertical turbine pump installations.
Suction piping should be designed to minimize unnecessary friction losses and excessive velocity.
A pipe that is too small can increase pressure loss between the water source and the pump. Every additional pressure loss reduces the suction condition available to the pump.
NFPA 20 also addresses suction piping dimensions and restrictions because suction conditions directly affect fire pump performance.
Valves, fittings, strainers, reducers, elbows, and other components can create pressure losses.
Particular attention should be paid to the suction side of the pump. Any restriction that significantly reduces pressure at the pump inlet can contribute to inadequate NPSH.
NFPA 20 includes requirements governing devices permitted in fire pump suction piping and emphasizes arrangements that do not restrict pump operation.
The geometry of suction piping matters.
Abrupt changes in direction, poorly arranged reducers, inadequate straight pipe lengths, and unfavorable flow patterns can create turbulence and uneven flow entering the pump.
The objective is to provide the pump with a stable and sufficiently pressurized flow entering the suction inlet.
A low water level can reduce the suction head available to the pump. In open tanks and wet-pit applications, inadequate submergence can also contribute to vortex formation.
A vortex can introduce air into the suction flow and negatively affect pump operation.
For large-capacity vertical turbine fire pumps, NFPA 20 specifically recognizes the relationship between submergence, vortex prevention, NPSH, and cavitation.
Water temperature affects vapor pressure. As water temperature increases, its vapor pressure also increases, which can reduce the margin between the pressure at the pump inlet and the vapor pressure of the water.
Therefore, unusual water temperatures should be considered when evaluating suction conditions.
A fire pump should not only be evaluated based on theoretical calculations. Testing can help identify actual suction and discharge conditions.
During commissioning and periodic testing, relevant pressure and flow measurements can provide useful information about whether the pump is operating under expected conditions.
If unusual noise, vibration, suction pressure fluctuations, or unexpected performance are observed, the suction system should be investigated rather than assuming that the pump itself is defective.
Suction pressure is one of the most useful parameters when troubleshooting a suspected cavitation problem.
However, suction pressure shown on a gauge is not automatically equivalent to NPSH available. NPSH calculations involve absolute pressure, elevation, liquid vapor pressure, and other factors.
This distinction is important because a suction gauge reading alone may not provide enough information to determine whether a pump has sufficient NPSH.
NFPA 20 includes requirements for suction pressure measurement and recognizes conditions where a compound pressure/vacuum gauge may be necessary.
For a complete investigation, engineers should evaluate the actual suction pressure, water level, temperature, flow rate, pipe losses, elevation, and pump manufacturer's NPSH data.
Not necessarily.
Cavitation can result from the interaction between pump design and installation conditions. Even a properly manufactured fire pump can experience cavitation if it is installed with inadequate suction conditions.
For this reason, responsibility for cavitation prevention is shared across the project lifecycle.
The pump manufacturer should provide accurate hydraulic performance data and application requirements. The system designer should evaluate the water supply and suction conditions. The contractor should install the suction piping and equipment correctly. During commissioning, the system should be tested under appropriate operating conditions.
This is particularly important for projects involving high-capacity fire pumps, long suction pipelines, elevated installations, low-level water supplies, and vertical turbine pumps.
A professional fire pump manufacturer should consider cavitation prevention during pump design, hydraulic analysis, testing, and application support.
Pump hydraulic design determines how water enters the impeller and moves through the pump. Performance testing helps verify the relationship between flow, pressure, speed, and other operating parameters.
For project-specific applications, manufacturers can also provide information needed for suction system evaluation, including pump performance curves and applicable NPSH data.
For fire protection projects, this technical information helps engineers make better decisions when designing the water supply and suction arrangement.

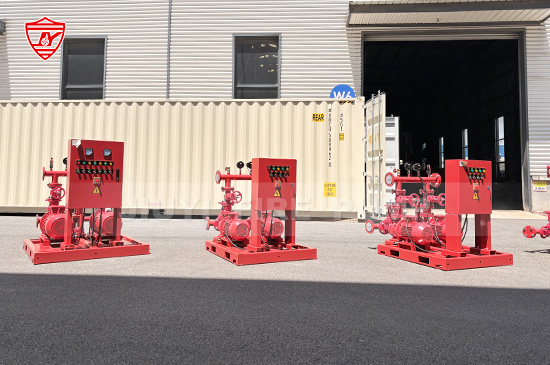

.jpg)
Fire pump cavitation occurs when the pressure of water entering a pump becomes insufficient, allowing vapor bubbles to form and subsequently collapse inside the pump. The condition can cause noise, vibration, reduced hydraulic performance, and long-term component damage.
The most important concept for preventing cavitation is adequate NPSH. NPSH available is determined by the installation and water supply, while NPSH required is related to the pump and its operating conditions.
Effective prevention therefore requires more than simply selecting a pump with the correct flow and pressure rating. Suction pipe sizing, water level, pump elevation, water temperature, fittings, restrictions, submergence, and actual operating conditions all need to be considered.
For fire protection systems, reliable suction conditions are essential to ensuring that the fire pump can deliver the required performance when it is needed. Working with an experienced fire pump manufacturer during pump selection, system design, installation, and testing can help identify potential cavitation risks before they become equipment or fire protection system problems.
