Fire pump churn pressure is an important performance characteristic that every fire protection engineer, contractor, and system designer should understand when selecting or evaluating a fire pump. It refers to the pressure a fire pump produces when it is running at rated speed with little or no water flowing through the discharge system.
Also known as shutoff pressure, churn pressure represents the maximum pressure that a centrifugal fire pump can develop under a no-flow condition. Although a fire protection system is designed to operate with water flowing to sprinklers, hydrants, standpipes, or other firefighting equipment, the pump may temporarily operate at or near churn conditions during starting, testing, or certain system operating conditions.
Understanding fire pump churn pressure is essential for proper system design, pressure control, component selection, and fire pump testing. It also helps users interpret the fire pump performance curve and determine whether a selected pump is suitable for the required application.

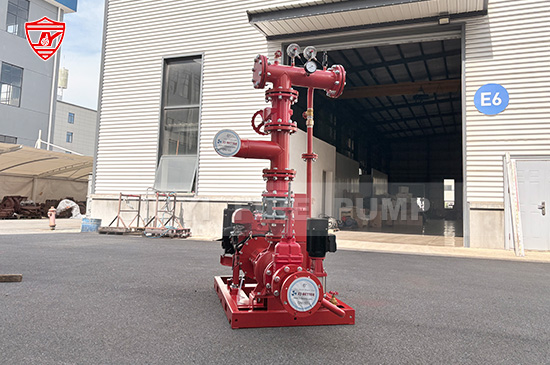

.jpg)
In simple terms, fire pump churn pressure is the discharge pressure generated by a fire pump when the pump is operating at its rated speed and the discharge flow is essentially zero.
For example, suppose a fire pump is rated at 1,000 GPM at 100 PSI. Its performance curve may show a churn pressure of approximately 120 PSI. This means that when the pump operates at rated speed with no significant water flow, the pump can develop approximately 120 PSI of discharge pressure.
The 100 PSI rating does not mean that 100 PSI is the maximum pressure the pump can produce. Instead, the rated point represents a specific combination of flow and pressure on the pump's performance curve. Churn pressure is another point on that same curve, located at or near zero flow.
This distinction is important because fire pump systems must be designed to accommodate pressure conditions that can occur above the rated pressure.
Fire pump rated pressure and churn pressure are related, but they are not the same thing.
The rated pressure is the pressure a pump is designed to provide at its rated flow. For example:
The rated operating point is normally the primary reference point for evaluating whether the pump meets the hydraulic requirements of a fire protection system.
Churn pressure, however, is important because it indicates how much pressure the pump can develop when there is little or no flow.
A centrifugal fire pump generally produces its highest discharge pressure at or near zero flow. As flow increases, the pressure generated by the pump generally decreases according to its performance curve.
Therefore, a pump with a rated pressure of 100 PSI can have a churn pressure higher than 100 PSI.
Churn pressure is important because fire protection systems contain many components that must withstand the pressures generated by the fire pump.
These components can include:
If the pump produces a higher pressure at churn than the system components are designed to handle, the system may require appropriate pressure-control measures.
For this reason, engineers should not evaluate a fire pump only by looking at its rated flow and rated pressure. The complete pump performance curve, including churn pressure, should be considered during system design.
Fire pump churn pressure is normally identified on the fire pump performance curve.
A typical centrifugal fire pump curve shows pump pressure or head on the vertical axis and flow on the horizontal axis.
At the left side of the curve, where flow approaches zero, the curve represents the pump's churn or shutoff pressure.
As flow increases, the pressure typically decreases along the curve.
The curve may include several important operating points, such as:
When reviewing a fire pump curve, it is therefore important to look at the entire curve rather than focusing only on the rated point.
A fire pump performance test can include a churn test in which the pump operates with the discharge flow closed or at a condition representing zero flow.
Before testing, the pump and associated equipment should be prepared according to the applicable installation, testing, and commissioning procedures.
During a churn test, the pump is operated at its specified rated speed while the discharge pressure is observed. Because there is little or no flow, the measured discharge pressure represents the pump's shutoff or churn condition.
The measured result can then be compared with the manufacturer's certified or approved performance data.
For a complete fire pump acceptance test, additional flow points are normally evaluated rather than relying only on the churn condition. These points help demonstrate how the pump performs across its operating range.
Churn pressure is a natural characteristic of centrifugal pump operation.
Inside a centrifugal fire pump, the rotating impeller transfers energy to the water. When water is flowing through the pump, part of this energy is used to move the water through the piping system.
When the discharge flow approaches zero, the pump continues rotating and transferring energy to the water even though very little water is leaving the pump.
As a result, the discharge pressure rises toward its maximum value.
This is why the churn point is generally located at the beginning of the fire pump performance curve.
The exact churn pressure depends on the pump's hydraulic design, impeller diameter, operating speed, and other design characteristics.
Yes. Pump speed has a significant effect on centrifugal pump performance.
When a centrifugal fire pump operates at its specified rated speed, its performance curve provides the expected relationship between flow and pressure.
If the pump speed changes, the pump's flow and pressure characteristics also change.
This is particularly important for systems using diesel engines or electric motors as drivers. The driver must operate the pump at the required speed so that the pump can deliver its intended performance.
During testing and commissioning, verifying the actual operating speed is therefore important when comparing measured performance against the manufacturer's data.
When selecting a fire pump, engineers should consider both the required operating point and the maximum pressure conditions that can occur in the system.
Suppose a project requires approximately 1,000 GPM at 100 PSI. A pump may meet this duty point while producing significantly higher pressure at churn.
The piping system and associated components must therefore be suitable for the pressure conditions generated by the pump.
This becomes especially important in high-rise buildings and systems with significant static pressure differences.
For example, a fire pump serving a tall building may already need to overcome substantial elevation-related pressure. Adding pump-generated pressure can result in high pressures at lower portions of the system.
In these applications, the relationship between pump churn pressure, static pressure, system elevation, and component pressure ratings should be carefully evaluated.
High-pressure applications require particular attention to churn pressure.
A system may have a relatively high pump rating because it needs to provide sufficient pressure at remote or elevated areas. However, the resulting churn pressure can be considerably higher than the rated pressure.
Engineers should evaluate the maximum potential system pressure, not simply the nominal pump rating.
This evaluation can influence decisions regarding:
The goal is to ensure that the fire protection system remains within the allowable pressure limits of its components under both flowing and non-flowing conditions.
Churn pressure is also relevant when a fire pump system includes a jockey pump.
A jockey pump is designed to maintain system pressure during normal small pressure losses without starting the main fire pump.
The jockey pump should be selected and controlled so that its operation does not unintentionally cause the main fire pump to start under normal conditions.
The relationship between jockey pump pressure, main fire pump churn pressure, and the controller start and stop settings should therefore be considered during system design.
The main fire pump is intended to provide the significant flow required during a fire event, while the jockey pump generally maintains system pressure during normal conditions.
Proper coordination between these components helps prevent unnecessary starting of the main fire pump.
Fire pump oversizing is another reason to pay attention to churn pressure.
Selecting a pump that is substantially larger than the actual hydraulic requirement may result in a performance curve that produces higher pressures than necessary under certain operating conditions.
The problem is not simply that the pump has a higher rated capacity. The entire performance curve needs to be considered.
An appropriate fire pump should be selected based on the required system flow, pressure, available water supply, elevation, friction losses, and applicable fire protection requirements.
The pump's churn pressure should then be reviewed alongside the rated operating point and other system pressure conditions.
A higher churn pressure is not automatically better.
Fire pump performance must be evaluated in relation to the requirements of the complete fire protection system.
A pump must provide adequate pressure and flow where they are needed while remaining compatible with the pressure limitations of system components.
If churn pressure is excessively high for a particular application, it may create unnecessary pressure on downstream components or complicate system design.
Conversely, insufficient pump pressure at the required operating point may prevent the system from delivering the required hydraulic performance.
Therefore, the objective is not simply to maximize churn pressure. The objective is to select a fire pump whose complete performance characteristics are appropriate for the project.
Fire pump manufacturers develop pump hydraulic designs to achieve specific performance characteristics.
Factors such as impeller geometry, impeller diameter, casing design, pump speed, and hydraulic passage dimensions affect the relationship between flow and pressure.
During manufacturing and testing, fire pumps can be evaluated across multiple operating points to verify their performance.
For fire pump buyers, it is important to obtain reliable pump performance data and review the complete certified or approved curve for the specific pump configuration.
The actual performance of a pump should be considered together with the selected driver, controller, operating speed, and other components of the fire pump set.
When reviewing a fire pump for a project, buyers and engineers should examine more than one number.
Important information includes:
For a complete fire pump set, the electric motor or diesel engine must also be appropriately matched to the pump.
A properly selected fire pump should satisfy the required duty point while maintaining suitable performance across the expected operating range.
One common misunderstanding is that the rated pressure is the maximum pressure a fire pump can produce. For centrifugal fire pumps, this is generally not correct. The pump can produce a higher pressure at or near zero flow.
Another misunderstanding is that churn pressure is the pressure the system will normally experience during a fire.
The actual operating pressure depends on the water demand and system resistance. During a real fire event, water is flowing through sprinklers, hose stations, hydrants, or other outlets. Therefore, the pump will normally operate at a point somewhere along its performance curve rather than at the churn point.
A third misunderstanding is to ignore churn pressure during equipment selection. Even if the pump's rated operating point appears correct, the system still needs to accommodate the pressure that may occur under low-flow conditions.
.jpg)
Fire pump churn pressure is the pressure generated by a centrifugal fire pump at or near zero flow while operating at its specified rated speed. It is commonly referred to as shutoff pressure and represents an important point on the fire pump performance curve.
Understanding churn pressure helps engineers, contractors, and project owners properly evaluate fire pump selection and system pressure conditions. It is particularly important when designing high-pressure systems, high-rise buildings, and applications where downstream components have specific pressure limitations.
When selecting a fire pump, do not evaluate the pump based only on its rated flow and rated pressure. Review the complete performance curve, including churn pressure, operating points, driver requirements, and the pressure characteristics of the entire fire protection system.
For fire pump manufacturers, accurate hydraulic testing and reliable performance data are essential for demonstrating that a pump can deliver the required performance under different operating conditions.
A well-selected fire pump should provide the required flow and pressure when the system demands it while maintaining appropriate performance across the complete operating range. Understanding churn pressure is an important part of making that selection correctly.
