When selecting a fire pump for a fire protection system, two of the most important performance parameters are flow and pressure. However, simply knowing the maximum flow or maximum pressure of a pump is not enough to determine whether the pump is suitable for a particular fire protection application.
This is where the fire pump rated point becomes important.
The rated point is a defined operating point on a fire pump's performance curve, identified by a specific rated flow and corresponding rated pressure. It provides a standardized reference for understanding the pump's intended performance and comparing the pump with the hydraulic requirements of a fire protection system.
For engineers, contractors, system designers, distributors, and facility owners, understanding the rated point makes fire pump selection, system design, testing, and performance evaluation much easier.

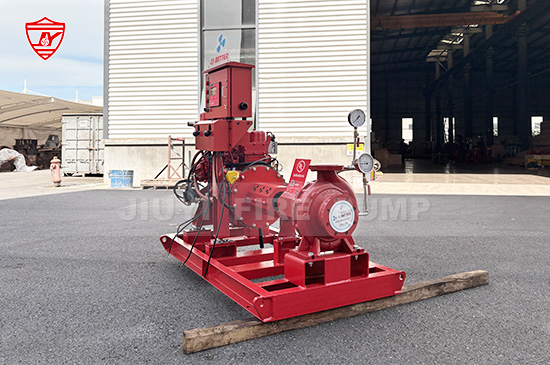

.jpg)
A fire pump rated point is the point on the manufacturer's certified performance curve corresponding to the pump's rated flow and rated pressure.
For example, a fire pump may have a rating of:
1,000 GPM at 100 PSI
In this example:
In metric units, the same concept may be expressed using cubic meters per hour and bar or meters of head.
The rated point should not be confused with the pump's shutoff pressure, maximum flow, or maximum achievable pressure. A fire pump can operate at different points along its performance curve, while the rated point serves as an important reference for the pump's designated capacity.
To understand the rated point, it is necessary to understand the two parameters that define it.
Rated flow is the flow capacity associated with the pump's designated rating.
Fire protection systems require a certain volume of water to be delivered to sprinklers, hydrants, hose stations, standpipes, or other fire protection equipment. The required flow depends on the hydraulic design of the system and the applicable fire protection requirements.
A pump's rated flow must therefore be suitable for the water demand of the system.
For example, if the system requires approximately 750 GPM under the specified design conditions, a pump with a rated flow of 1,000 GPM may be considered depending on the complete hydraulic design and applicable requirements.
Rated flow is not necessarily the highest flow the pump can produce. The pump may deliver more water than its rated flow under certain operating conditions.
Rated pressure is the pressure associated with the rated flow.
Pressure is required to overcome elevation differences, friction losses in piping, valves and fittings, and the pressure requirements of the fire protection devices at the hydraulically most demanding locations.
For a pump rated at 1,000 GPM and 100 PSI, the rated pressure is the pump's specified pressure at the rated flow under the applicable test conditions.
This is why flow and pressure should always be considered together.
A pump that provides a large flow but insufficient pressure may not meet the requirements of the fire protection system. Likewise, a pump capable of very high pressure but insufficient flow may also be unsuitable.
The rated point can typically be identified on the manufacturer's fire pump performance curve.
A typical performance curve shows the relationship between:
The rated point is identified by locating the specified rated flow on the horizontal axis and the corresponding rated pressure or head on the vertical axis.
For example, consider a pump rated at 1,500 GPM at 100 PSI. The point corresponding to 1,500 GPM and 100 PSI is the rated point on the pump's performance curve.
The curve then provides additional information about how the pump behaves when operating at flows below or above the rated flow.
Understanding this curve is essential when evaluating whether a fire pump is appropriate for a specific project.
The rated point is important because it provides a common reference for pump selection and performance evaluation.
The primary purpose of a fire pump is to provide the required water flow and pressure to the fire protection system.
The rated point provides engineers with a clear reference when comparing the pump's capabilities with the system's hydraulic demand.
However, pump selection should never be based solely on the rated point. The complete pump curve should also be reviewed to make sure the pump performs appropriately across the expected operating range.
A fire pump performance curve allows engineers to understand how pressure changes as flow changes.
For example, when flow increases, discharge pressure generally decreases. The performance curve illustrates this relationship.
The rated point gives engineers a specific reference within this overall performance range.
Fire pump testing commonly evaluates performance at multiple operating conditions rather than only at one point.
A typical performance evaluation may consider conditions such as shutoff, rated flow, and higher flow conditions according to the applicable testing requirements.
The rated point therefore provides an important benchmark against which actual pump performance can be evaluated.
If a pump cannot achieve its expected performance at the rated condition, it may indicate an issue with the pump, driver, water supply, piping configuration, valves, or other components.
Fire protection projects often involve manufacturers, engineering companies, contractors, distributors, authorities, and building owners.
Using a standardized rating such as 1,000 GPM at 100 PSI provides a simple way to communicate the basic capacity of a fire pump.
This makes technical specifications easier to review during project planning and equipment selection.
One common misunderstanding is that the rated point is the same as the shutoff point.
It is not.
The shutoff point, sometimes called the churn condition, represents the pump's pressure when there is essentially no water flow through the pump.
The rated point, in contrast, represents the specified combination of rated flow and rated pressure.
These two operating conditions are located at different positions on the pump performance curve.
For example, a pump rated at 1,000 GPM at 100 PSI may produce a higher pressure at zero flow. That higher pressure is associated with the shutoff condition rather than the rated point.
Understanding this difference is particularly important when reviewing pump curves and evaluating whether a pump is suitable for a fire protection system.
The rated point should also not be confused with maximum flow.
A pump may be capable of delivering more water than its rated flow. However, operating at a higher flow changes the pressure produced by the pump.
For example, a pump rated at 1,000 GPM may deliver 1,500 GPM under certain conditions, but the pressure at 1,500 GPM will normally be lower than the pressure at the rated point.
Therefore, looking only at the maximum flow can lead to an incorrect assessment of pump suitability.
The entire performance curve should be evaluated.
A basic understanding of the performance curve is valuable for anyone involved in fire pump selection.
The horizontal axis normally represents flow, while the vertical axis represents pressure or head.
As you move from left to right along the curve, the flow increases. The corresponding pump pressure generally decreases.
When reviewing a fire pump curve, consider the following:
1. Identify the rated flow.
Find the flow value specified for the pump, such as 500 GPM, 750 GPM, 1,000 GPM, or 1,500 GPM.
2. Identify the rated pressure.
Determine the pressure corresponding to the rated flow.
3. Locate the rated point.
The intersection of rated flow and rated pressure represents the rated point.
4. Check the operating range.
Review the curve at lower and higher flow conditions.
5. Check driver requirements.
The selected electric motor or diesel engine must be capable of providing the required power under the applicable operating conditions.
6. Compare the curve with system demand.
The pump must provide appropriate flow and pressure at the system's required operating point.
This approach provides a much more reliable basis for pump selection than simply comparing catalog flow and pressure numbers.
The appropriate rated point depends on the requirements of the fire protection system.
Important factors may include:
For example, a low-rise warehouse and a high-rise building may have very different hydraulic requirements. Similarly, an industrial facility with extensive fire protection piping may require a significantly different pump capacity from a small commercial building.
This is why there is no single “best” rated point for every fire protection project.
For fire pump manufacturers, the rated point is an essential part of product design, testing, certification, and documentation.
A manufacturer develops the pump's hydraulic characteristics through pump design, hydraulic modeling, prototype testing, and performance verification.
The resulting performance data are used to establish the pump's operating characteristics.
For certified fire pump products, the published performance curve and rating provide important information for engineers and contractors during equipment selection.
At BETTER Technology Group, fire pump performance is supported by dedicated testing capabilities designed to verify hydraulic performance and product quality. The company manufactures fire pumps and related fire protection equipment for different project requirements, including electric and diesel-driven fire pump systems.
Selecting a fire pump based only on its nominal flow rate is not enough.
Consider two pumps that are both rated at 1,000 GPM. If one provides the required pressure at the system's design condition while the other does not, they may not be equally suitable for the project.
The rated point should therefore be evaluated together with the complete performance curve and the hydraulic requirements of the system.
A good pump selection process considers both how much water the system needs and how much pressure is required to deliver that water effectively.
The pump driver, controller, suction conditions, piping arrangement, and other system components should also be evaluated as part of the overall fire pump system.
Several mistakes can occur during fire pump selection.
A pump may have sufficient flow but insufficient pressure. Both parameters must be evaluated together.
The highest pressure shown on a pump curve may occur at zero flow. This does not mean that the pump provides that pressure at rated flow.
The rated point is important, but it represents only one point on the curve. The pump should be evaluated across the relevant operating range.
The motor or diesel engine must be capable of driving the pump under the required conditions.
Elevation, friction losses, water supply pressure, pipe configuration, and fire protection equipment all affect the required pump performance.
.jpg)
The fire pump rated point is one of the fundamental concepts in fire pump engineering. It represents the specified combination of rated flow and rated pressure and provides an important reference for pump selection, performance evaluation, testing, and system design.
However, the rated point should never be viewed in isolation. The complete fire pump performance curve, system hydraulic demand, driver capacity, water supply, and applicable project requirements must all be considered.
For engineers, contractors, distributors, and facility owners, understanding the relationship between rated flow, rated pressure, and the pump performance curve can help prevent incorrect equipment selection and improve the reliability of fire protection systems.
For manufacturers, accurately developing, testing, and documenting fire pump performance is equally important. A properly designed and verified fire pump provides the dependable water supply that a fire protection system requires when it matters most.
