A fire pump is one of the most important components of a fire protection system. Its job is to provide the required water flow and pressure when the available water supply cannot meet the hydraulic demands of the system. However, selecting a fire pump is not simply a matter of choosing a pump with the highest flow or pressure. The pump must operate at the conditions required by the fire protection system.
This is where the fire pump duty point becomes essential.
The duty point represents the combination of flow and pressure that a fire pump is expected to deliver for a particular fire protection application. It provides a critical reference for selecting, designing, testing, and operating a fire pump system.
Understanding the duty point helps engineers, contractors, system designers, and facility owners select a pump that can reliably satisfy system demand without unnecessary oversizing or inadequate performance.

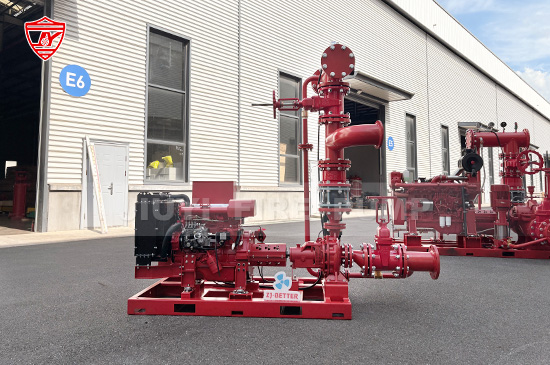

.jpg)
A fire pump duty point is the specific operating condition defined by the required water flow rate and discharge pressure of the fire protection system.
In simple terms:
Fire Pump Duty Point = Required Flow + Required Pressure
For example, a fire protection system may require a fire pump to deliver:
1,000 GPM at 100 PSI
In this example, 1,000 GPM is the required flow and 100 PSI is the required pressure. Together, they define the pump's duty point.
The duty point is not necessarily the maximum performance of the pump. Instead, it represents an important design operating condition that the selected pump should be capable of meeting.
The actual duty point depends on the hydraulic requirements of the fire protection system, including sprinkler demand, standpipe requirements, hose connections, elevation differences, friction losses, piping configuration, and the available water supply.
The duty point is one of the most important pieces of information used during fire pump selection.
A fire pump that cannot provide sufficient flow and pressure may leave parts of the fire protection system without adequate water during an emergency. On the other hand, selecting a pump that is significantly larger than necessary can create additional costs and may introduce operational and hydraulic challenges.
The duty point helps ensure that the pump is properly matched to the system.
It is important for several reasons.
Manufacturers use the required flow and pressure to identify an appropriate pump model, impeller size, motor or diesel engine rating, and other system components.
For example, a project requiring 1,500 GPM at a specific pressure will require a different pump configuration from a system requiring 500 GPM.
The duty point provides a reference for comparing the required system performance with the pump's performance curve.
Engineers can determine whether the selected pump can provide the required flow and pressure under actual operating conditions.
During a fire, the pump must deliver sufficient water to the areas requiring protection. A properly established duty point helps ensure that the fire pump is designed around the actual hydraulic requirements of the system.
Oversized or undersized pumps can create problems.
An undersized pump may fail to provide adequate pressure or flow. An oversized pump may cost more to purchase and operate and can produce excessive pressure in some system conditions.
Proper duty point analysis provides a more reliable basis for pump selection.
Determining the duty point begins with a hydraulic analysis of the fire protection system.
The system designer evaluates the required water demand and calculates the pressure losses between the water source and the most hydraulically demanding point in the system.
Several factors can affect the final duty point.
The first major factor is the required water flow.
The required flow depends on the type of fire protection system and the hazard being protected. Different buildings and industrial facilities can have significantly different water demand requirements.
For example, a warehouse, high-rise building, manufacturing facility, commercial building, and petrochemical facility may require different fire flow rates.
Flow alone is not enough.
The fire pump must also generate sufficient pressure to overcome system resistance and deliver the required pressure at the remote or hydraulically demanding area.
Required pressure may need to account for:
Elevation has a significant effect on required pump pressure.
When water must be delivered to a higher floor or elevated area, additional pressure is required to overcome the elevation difference.
This is especially important in high-rise buildings and multi-level industrial facilities.
Water flowing through pipes encounters resistance. This resistance results in pressure loss.
The amount of friction loss depends on factors such as pipe diameter, pipe length, flow rate, pipe material, fittings, valves, and system configuration.
The fire pump must provide enough pressure to compensate for these losses while still delivering the required pressure at the point of demand.
The duty point should always be considered together with the fire pump performance curve.
A pump performance curve shows how the pump's flow and pressure relationship changes under different operating conditions.
Typically, the horizontal axis represents flow, while the vertical axis represents pressure or head.
The duty point can be plotted on this curve.
If the required duty point is 1,000 GPM at 100 PSI, the point representing 1,000 GPM and 100 PSI can be compared with the pump's performance curve.
This allows engineers to evaluate whether the selected pump can meet the required operating condition.
However, fire pump selection should not be based on the duty point alone. The complete pump performance curve and applicable fire protection requirements must also be evaluated.
The pump should be capable of providing the required performance across the relevant operating range, rather than only at one isolated point.
Fire pumps are commonly identified by rated flow and rated pressure.
For example, a pump may have a rated capacity of:
1,000 GPM at 100 PSI
The rated flow indicates the pump's nominal capacity, while the rated pressure indicates the pressure associated with that rated operating condition.
The rated point is important, but it should not be confused with every operating condition the pump may experience.
A fire pump can operate at different flow rates depending on system demand. During an actual fire event, water demand may change as sprinklers activate, hose streams are used, or other firefighting equipment comes into operation.
Therefore, the complete performance characteristics of the pump are important when evaluating system suitability.
One common misunderstanding is confusing the duty point with shutoff pressure.
They are not the same.
Duty point refers to a specific flow and pressure requirement where the pump is expected to operate.
Shutoff pressure refers to the pressure developed by the pump when there is essentially no water flow through the pump.
A pump may produce considerably higher pressure at zero flow than it produces at its rated flow.
For example, a pump could have a rated operating condition of 1,000 GPM at 100 PSI while producing a higher pressure under shutoff conditions.
Both conditions are important when evaluating the pump curve and system compatibility.
Incorrectly determining the fire pump duty point can have serious consequences for system performance.
If the calculated duty point does not adequately represent the actual system demand, the selected pump may not provide enough water at the required pressure.
This can result in inadequate performance at remote sprinklers, hose stations, standpipes, or other fire protection equipment.
If the system is significantly overestimated, the project may end up with an unnecessarily large fire pump.
This can increase equipment costs, installation requirements, electrical demand, fuel consumption for diesel-driven systems, and overall system complexity.
An improperly selected pump may also operate away from its preferred performance range.
This can affect efficiency, mechanical loading, vibration, and long-term reliability.
For these reasons, accurate hydraulic calculations and proper pump selection are essential.
The fire pump selection process should begin with accurate project requirements.
First, determine the required flow rate based on the applicable fire protection design.
Next, determine the required pressure by considering elevation, friction losses, system components, and the required pressure at the point of demand.
The resulting flow and pressure establish the basic duty point.
The next step is to compare the duty point with available fire pump performance curves.
The selected pump should provide the required flow and pressure while also satisfying the applicable fire protection requirements and project specifications.
The driver must also be properly matched to the pump. Depending on the application, this may involve an electric motor or diesel engine.
The controller, valves, accessories, suction conditions, discharge piping, and other components should also be considered as part of the complete fire pump system.
Different applications can have very different duty points.
A commercial building may require a relatively moderate fire flow, while a large warehouse could require substantially greater capacity because of its storage arrangement and hazard classification.
Industrial facilities may require high-capacity fire pumps to supply multiple protection systems simultaneously.
High-rise buildings introduce additional pressure requirements because of elevation.
Large infrastructure projects may use multiple fire pumps or different pump arrangements to provide redundancy and meet system demand.
This demonstrates why there is no single universal fire pump duty point.
The correct duty point must be established for each specific project.

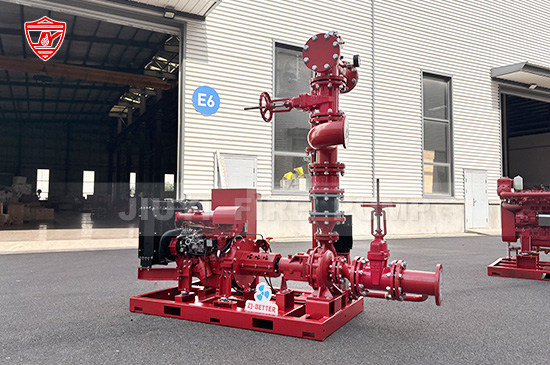

For a fire pump manufacturer, the duty point is a critical input during the quotation, engineering, and production process.
Once the required flow and pressure are known, the manufacturer can evaluate suitable pump models and configurations.
The manufacturer may determine the appropriate pump size, impeller diameter, driver power, materials, connection configuration, and other technical parameters.
A professional fire pump manufacturer should also be able to provide performance data that allows customers and engineers to verify whether the proposed pump is suitable for the specified duty point.
Performance testing is another important part of quality control.
Testing a fire pump under controlled conditions helps verify that the actual pump performance corresponds with the expected hydraulic characteristics.
When requesting a fire pump quotation, buyers should provide as much technical information as possible.
Instead of simply asking for a "fire pump," it is much more useful to provide:
Providing accurate duty point information allows the manufacturer to recommend a more appropriate solution.
It can also reduce the risk of selecting a pump that does not satisfy the actual project requirements.

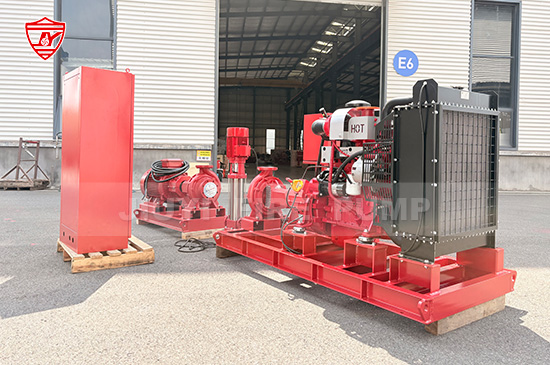

.jpg)
The fire pump duty point is a fundamental concept in fire protection system design. It defines the combination of flow and pressure that the fire pump is expected to deliver and provides a key reference for pump selection and hydraulic performance evaluation.
A properly established duty point helps engineers select a pump that can meet system demand while avoiding unnecessary oversizing. It also provides an important connection between hydraulic calculations, pump performance curves, equipment selection, and factory testing.
For building owners, contractors, engineers, and fire protection professionals, understanding the duty point makes it easier to communicate project requirements and evaluate fire pump proposals.
