A fire pump system is one of the most critical components in a building’s fire protection infrastructure. During an emergency, the fire pump must deliver the required water flow and pressure to fire sprinkler systems, hydrants, and other firefighting equipment. Any problem caused by incorrect installation, damaged components, or missing parts can affect system reliability when it matters most.
Before installing a fire pump system, a detailed inspection of all components is essential. Proper pre-installation inspection helps identify transportation damage, manufacturing defects, incorrect specifications, and installation risks before the equipment is placed into operation.
For contractors, engineers, and facility owners, understanding how to inspect fire pump components before installation can reduce project delays, prevent costly repairs, and improve the long-term performance of the entire fire protection system.
.jpg)
Fire pump systems usually include multiple components working together, including the main fire pump, driver, controller, jockey pump, valves, pressure tanks, piping accessories, and monitoring devices. Each component must meet project requirements and function correctly as part of the complete system.
A pre-installation inspection provides several benefits:
For UL Listed fire pump systems and projects following NFPA 20 requirements, component verification before installation is especially important because every part of the system must meet specific performance and safety expectations.
Before physically inspecting the equipment, review all technical documents provided by the manufacturer. Documentation verification should be the first step in the inspection process.
Important documents to check include:
The information on the nameplate should match the approved project requirements. Check important parameters such as:
Incorrect specifications discovered after installation can lead to significant project delays and replacement costs.
The fire pump is the core component of the system, and its condition directly affects firefighting performance. Before installation, inspect the pump carefully for any visible issues.
Key inspection points include:
Check the pump casing for:
The casing must maintain structural integrity because it contains high-pressure water during operation.
Inspect the shaft and coupling area for:
A damaged shaft or coupling may cause vibration, mechanical failure, or reduced pump efficiency.
The impeller should be checked for:
The impeller is responsible for generating water pressure, and any damage can affect the pump’s hydraulic performance.
Inspect seals and bearings to ensure:
Damaged seals or bearings can lead to premature equipment failure.
Fire pumps require a reliable driver to operate during emergencies. The inspection process depends on whether the system uses an electric motor or diesel engine.
For electric fire pumps, check:
Make sure the motor rating matches the fire pump requirements. An incorrectly sized motor may fail to provide sufficient power during operation.
For diesel fire pump systems, inspect:
Check that:
Diesel engines used for fire protection must remain reliable after long periods of standby operation, so careful inspection before installation is essential.
The fire pump controller controls the starting and operation of the pump system. A malfunctioning controller can prevent the pump from starting during a fire emergency.
Inspect the controller for:
For automatic fire pump systems, verify that all required control functions are included, such as:
The controller should be stored in a dry and protected environment before installation to prevent electrical damage.
The jockey pump maintains pressure in the fire protection piping system and prevents unnecessary starting of the main fire pump.
Before installation, inspect:
Verify that the jockey pump capacity is suitable for maintaining system pressure without affecting the operation of the main fire pump.
A properly installed jockey pump helps reduce wear on the main fire pump and improves system efficiency.
Valves and piping accessories are essential parts of a complete fire pump installation.
Important components to inspect include:
Check:
Inspect check valves for:
Verify:
Damaged or incorrect valves can affect water supply performance and create operational problems during emergencies.

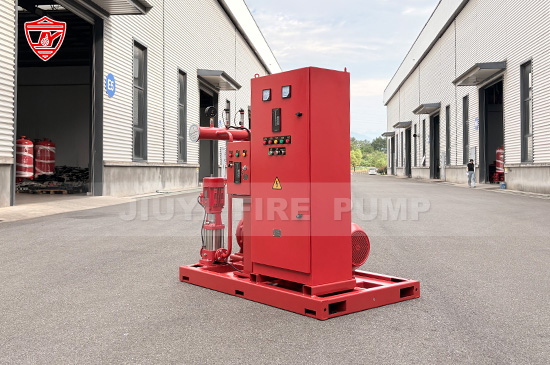

Many fire pump systems are installed on a common base frame. Before installation, inspect:
The base frame must be strong enough to support the complete assembly. Proper alignment between the pump and driver is critical for reducing vibration and extending equipment life.
Fire pump equipment may experience damage during transportation or storage. Before installation, check:
Components should be stored according to manufacturer recommendations. Pumps, motors, and controllers should be protected from excessive humidity, dust, and extreme temperatures before installation.
A complete fire pump installation requires many small but important accessories. Before installation begins, confirm that all required items are available.
Common accessories include:
Missing accessories discovered during installation can delay the project schedule and increase labor costs.
During inspection, several common issues may be discovered:
The delivered equipment may not match the approved design. Always compare nameplate information with project documents.
Impacts, scratches, cracks, or deformation may occur during shipping. Damaged components should not be installed without evaluation.
Small accessories are sometimes overlooked but may be required for proper operation.
Exposure to moisture or contamination can affect electrical and mechanical components.
For certified fire pump systems, verify that certification markings and documentation are correct before installation.
To ensure a smooth installation process:
Working with an experienced fire pump manufacturer can also help ensure that equipment selection, delivery, installation, and commissioning processes are completed correctly.
.jpg)
Inspecting fire pump components before installation is a critical step in building a reliable fire protection system. From the main pump and driver to controllers, valves, and accessories, every component must be checked carefully to ensure proper operation.
A thorough pre-installation inspection helps prevent installation problems, reduces maintenance risks, and improves the overall safety performance of the fire pump system.
For contractors, engineers, and building owners, investing time in component inspection before installation is one of the most effective ways to ensure that the fire pump will perform reliably when emergency protection is needed most. As a professional fire pump manufacturer, providing high-quality equipment and complete technical support is essential for creating safer fire protection solutions worldwide.
