Learn how to calculate fire pump flow and pressure using system demand, friction loss, elevation, and required residual pressure for proper pump sizing.
Calculating the correct fire pump flow and pressure is one of the most important steps in designing a reliable fire protection system. A fire pump must provide enough water flow and pressure to supply sprinklers, hydrants, hose stations, standpipes, or other firefighting equipment under the required operating conditions.
Choosing a pump based only on the size of a building or the nominal pipe size can result in an unsuitable system. If the pump does not provide enough flow or pressure, the fire protection system may not perform as designed. If the pump is significantly oversized, it may create unnecessary pressure, increase equipment costs, and make system design more difficult.
For engineers, fire protection contractors, consultants, and project owners, understanding the relationship between flow, pressure, head, elevation, and friction loss is essential for selecting the right fire fighting pump.
This article explains the basic principles and practical steps used to calculate fire pump flow and pressure.

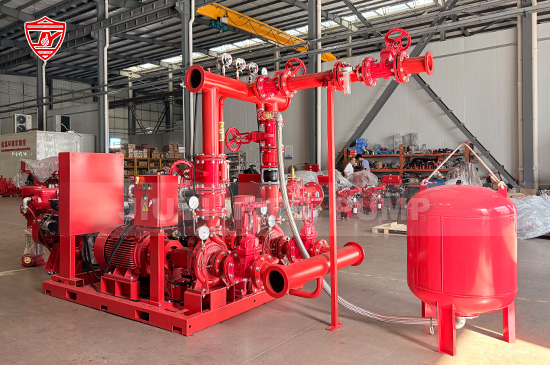

.jpg)
Fire pump flow is the volume of water that the pump delivers over a specific period of time.
Common units include:
GPM: gallons per minute
LPM: liters per minute
m³/h: cubic meters per hour
For example, a fire pump may be rated at 500 GPM, 750 GPM, 1,000 GPM, or several thousand GPM depending on the requirements of the fire protection system.
The required flow is normally determined by the hydraulic demand of the system rather than by the pump manufacturer.
The designer must determine how much water is required by the applicable fire protection equipment and the relevant design standard. Depending on the application, the calculation may involve automatic sprinklers, hose streams, hydrants, standpipes, water curtains, or other systems.
The pump's rated flow should therefore be selected after determining the system's required water demand.
Fire pump pressure is the pressure that the pump provides to overcome the resistance of the fire protection system and deliver water to the required location.
Pump pressure is commonly expressed in:
PSI
bar
kPa
meters of head
Pressure requirements are influenced by several factors, including pipe friction, elevation, fittings, valves, equipment losses, and the minimum pressure required at the most demanding discharge point.
For example, a sprinkler system may require a specific residual pressure at the hydraulically most remote sprinkler. The fire pump must provide enough pressure at the pump discharge to overcome all losses between the pump and that sprinkler.
Therefore, fire pump pressure should never be determined independently from the piping system and hydraulic calculations.
The first step in calculating fire pump flow is determining the required system flow.
The required flow depends on the type of fire protection system and the applicable design criteria.
For a sprinkler system, the hydraulic calculation may determine the required sprinkler discharge based on the design density, design area, sprinkler characteristics, and system configuration.
Additional hose stream demand may also need to be considered where applicable.
For hydrant or standpipe systems, the required flow can depend on the number of outlets operating simultaneously and the required discharge at each outlet.
The basic concept is:
Required Fire Pump Flow = Required System Water Demand
The exact calculation method depends on the project and the applicable fire protection requirements.
A fire pump manufacturer can provide pump performance information once the required flow and pressure have been established.
Once the required flow has been determined, the next step is to calculate the pressure required at the pump.
A simplified approach is:
Required Pump Pressure = Required Residual Pressure + Friction Loss + Elevation Loss − Available Suction Pressure
This relationship is useful for understanding the basic calculation.
Each part of the equation represents a different requirement.
This is the minimum pressure that must remain available at the required discharge point.
For example, if the hydraulically most remote sprinkler requires a specific pressure, the fire pump must provide enough pressure to maintain that requirement after all system losses are considered.
Water loses pressure as it travels through pipes, fittings, valves, and other components.
The amount of friction loss depends on:
Pipe diameter
Pipe length
Flow rate
Pipe material
Internal pipe condition
Fittings
Valves
Flow restrictions
As flow increases, friction loss generally increases. This is one reason why flow and pressure cannot be considered separately.
Water requires additional pressure to move upward.
A common approximation is that approximately 0.433 psi is required for every foot of water elevation.
In metric units, approximately 9.81 kPa is required for every meter of water elevation.
Therefore:
Elevation Pressure = Elevation × 0.433 psi/ft
or
Elevation Pressure ≈ Elevation × 9.81 kPa/m
For a building with multiple floors, elevation can become a significant part of the total fire pump pressure requirement.
If the pump receives water from a pressurized water supply, the available suction pressure can reduce the pressure that the pump itself needs to generate.
For example, if the system requires 120 psi at the pump discharge and there is 30 psi of reliable available suction pressure, the pump does not necessarily need to generate the entire 120 psi from zero.
However, the available suction pressure must be carefully evaluated under the required flow conditions rather than relying only on static pressure.
Friction loss is one of the most important factors in fire pump pressure calculations.
Two common methods used in hydraulic calculations are the Hazen-Williams equation and the Darcy-Weisbach equation.
For fire protection systems, the Hazen-Williams equation is widely used for water flow calculations.
A commonly used form is:
h = 4.52 × Q^1.85 / (C^1.85 × d^4.87)
where:
h = friction loss
Q = flow rate
C = Hazen-Williams roughness coefficient
d = pipe diameter
The exact units and equation form depend on the calculation system being used.
The important engineering principle is that friction loss increases significantly as flow increases and decreases as pipe diameter increases.
This means that selecting a larger pipe can reduce friction loss, while forcing a high flow rate through a relatively small pipe can create substantial pressure loss.
For actual project design, hydraulic calculations should be performed using the applicable engineering method, standards, and project requirements.
Calculating only straight-pipe friction loss is not enough.
Water also loses energy when it passes through:
Elbows
Tees
Reducers
Check valves
Isolation valves
Backflow preventers
Flow meters
Strainers
Other system components
These losses can be represented using equivalent pipe length or other accepted hydraulic calculation methods.
In a large fire protection system, the combined effect of fittings and valves can be significant.
A complete hydraulic calculation should therefore account for the entire flow path from the water source to the hydraulically most demanding discharge point.
Fire pump manufacturers may provide performance data in pressure units or head units.
The relationship between pressure and water head is important when interpreting pump curves.
For water:
1 bar ≈ 10.2 meters of water head
1 psi ≈ 0.703 meters of water head
1 meter of water head ≈ 9.81 kPa
For example, a pump producing approximately 100 meters of water head produces roughly 9.81 bar of pressure under ideal conversion conditions.
When comparing pump curves with hydraulic calculations, make sure the units are consistent.
Confusing pressure with head or mixing units can result in incorrect pump selection.
Once the required flow and pressure have been calculated, the result becomes the basis for selecting the fire pump.
For example, suppose the hydraulic calculation determines that the project requires approximately:
750 GPM at 100 psi
This becomes the project's required duty point.
The selected pump should have a performance curve that satisfies the required duty point while also meeting the applicable fire pump performance requirements.
The pump should not be selected simply because its maximum flow is greater than 750 GPM. Its pressure performance at the required flow is equally important.
This is why pump curves are essential during equipment selection.
A fire pump performance curve shows the relationship between flow and pressure.
As flow increases, the available pump pressure generally decreases.
When reviewing a pump curve, engineers should evaluate several important points, including:
Rated flow
Rated pressure
Shutoff pressure
Performance at higher flow
Performance at lower flow
Motor or engine power requirements
The required project duty point should fall within the appropriate operating range of the selected pump.
The pump curve should also be reviewed together with the applicable fire pump standard and project specification.
The fire pump calculation should include the water source.
A pump drawing water from a dedicated fire water tank may have different suction conditions from a pump connected to a pressurized municipal water supply.
Important information includes:
Static water level
Minimum water level
Maximum water level
Suction pipe size
Suction pipe length
Available suction pressure
Elevation between water source and pump
Required flow conditions
For projects using water from deep tanks or underground reservoirs, a vertical turbine fire pump may be appropriate.
The suction conditions must also be evaluated to ensure that the selected pump can operate properly without unacceptable suction problems.
Consider a simplified example.
Suppose a fire protection system requires:
Required flow: 500 GPM
Required residual pressure at the remote point: 60 psi
Friction loss: 25 psi
Elevation loss: 35 psi
Available suction pressure: 20 psi
The simplified pump pressure requirement is:
Required Pump Pressure = 60 + 25 + 35 − 20
Required Pump Pressure = 100 psi
Therefore, the preliminary pump duty point would be approximately:
500 GPM at 100 psi
This is a simplified example for understanding the calculation process. Actual fire protection system design requires detailed hydraulic calculations and must account for the specific project configuration and applicable requirements.
Once the required duty point is known, other factors must also be evaluated.
The project team should consider:
Pump type: End suction, horizontal split case, vertical turbine, or another suitable configuration.
Driver: Electric motor or diesel engine.
Certification: Requirements such as UL Listed or other applicable certifications.
Installation: Indoor, outdoor, pump room, containerized, or specialized installation.
Power supply: Availability and reliability of electrical power.
Environmental conditions: Temperature, humidity, altitude, corrosion, and other conditions.
Maintenance: Accessibility, spare parts, servicing, and long-term support.
A technically correct flow and pressure calculation is the starting point, not the end of the selection process.
Several mistakes can lead to incorrect pump selection.
Static pressure alone does not represent system performance at the required flow. Available pressure should be evaluated under appropriate flow conditions.
Pressure requirements can increase significantly in tall buildings or installations where the pump and discharge points are at different elevations.
Minor losses can accumulate throughout a large piping system.
A pump's maximum flow does not indicate the pressure it can provide at the required operating point.
Mixing PSI, bar, kPa, feet of head, and meters of head without proper conversion can produce major calculation errors.
An excessively large pump is not automatically safer. The pump must be selected based on the actual hydraulic requirements and applicable fire protection criteria.
Accurate hydraulic calculations provide the foundation for selecting the correct fire pump, but cooperation between the project engineer and manufacturer can help ensure that the selected equipment matches the calculated requirements.
A fire pump manufacturer should be able to provide:
Pump performance curves
Rated flow and pressure information
Pump dimensions
Motor or diesel engine data
Controller information
Certification documentation
Factory testing information
Installation requirements
Technical support
For larger or more complex projects, the manufacturer can also help review the required duty point and identify an appropriate pump configuration.

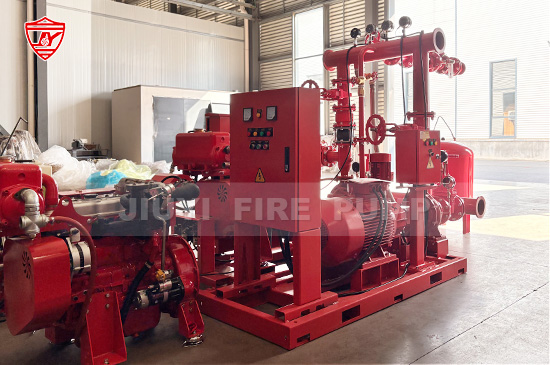

.jpg)
Calculating fire pump flow and pressure is a fundamental part of designing a reliable fire protection system.
The process starts by determining the required water flow and then calculating the pressure needed to overcome residual pressure requirements, friction losses, elevation, and other system resistance. Available suction pressure should also be considered when determining the final pump duty point.
A simple calculation can be expressed as:
Required Pump Pressure = Required Residual Pressure + Friction Loss + Elevation Loss − Available Suction Pressure
However, actual fire protection projects require detailed hydraulic calculations based on the complete system configuration and applicable standards.
Once the required flow and pressure are established, the pump curve, pump type, driver, certification, installation conditions, and complete fire pump package should be evaluated together.
As a fire pump manufacturer, BETTER Technology Group provides fire pump solutions for different fire protection applications, including electric fire pumps, diesel fire pumps, jockey pumps, horizontal split case pumps, end suction pumps, and vertical turbine fire pumps. Accurate project requirements and hydraulic calculations allow the appropriate pump solution to be selected for reliable fire protection performance.
