Fire pump pressure margin is the difference between the pressure a fire pump can provide at a specific operating condition and the pressure required by the fire protection system at that same condition.
In simple terms, it represents the pressure available above the minimum system requirement.
For fire protection engineers, contractors, pump distributors, and facility owners, understanding pressure margin is important because a fire pump should not simply produce the required pressure on paper. It must provide reliable hydraulic performance under the actual conditions of the fire protection system.
A properly selected fire pump needs to overcome factors such as elevation, friction loss, piping configuration, valves, fittings, equipment losses, and required pressure at the most hydraulically demanding sprinkler or hose outlet.
However, pressure margin should not be confused with simply adding an arbitrary percentage to the pump pressure. Fire pump selection should be based on the hydraulic characteristics of the complete fire protection system and the applicable design requirements.

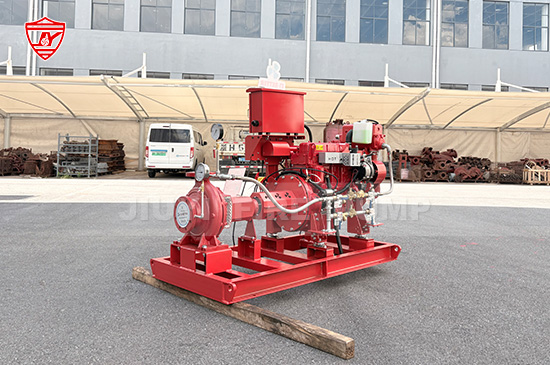

.jpg)
A fire protection system depends on water being delivered at sufficient pressure and flow when it is needed most.
If the available pump pressure is too close to the calculated system demand, relatively small changes in operating conditions can reduce the system's ability to meet its intended performance.
For example, pressure can be affected by:
A reasonable pressure margin can provide additional operating confidence when the system is designed, installed, and maintained correctly.
At the same time, excessive pressure is not automatically better. Excessive pressure can create other design issues, including unnecessary stress on system components, increased discharge pressure, and potential pressure-control requirements.
The objective is therefore not to maximize pressure. The objective is to select a fire pump that provides appropriate flow and pressure for the actual fire protection system.
The basic concept can be expressed using a simple formula:
Pressure Margin = Available Pump Pressure − Required System Pressure
For example, suppose a hydraulic calculation indicates that a fire protection system requires 120 psi at a particular flow rate. If the selected fire pump can provide 130 psi at that same flow rate, the nominal pressure margin is:
130 psi − 120 psi = 10 psi
The system therefore has a 10 psi pressure difference between the pump's available pressure and the calculated requirement at that operating point.
Pressure margin can also be expressed as a percentage:
Pressure Margin (%) = (Available Pressure − Required Pressure) ÷ Required Pressure × 100
Using the same example:
(130 − 120) ÷ 120 × 100 = 8.3%
This calculation is useful for understanding the relationship between pump performance and system demand.
However, engineers should be careful when applying a pressure-margin calculation. The pressure values must be compared at the same flow condition and reference point. Comparing the pump's shutoff pressure with the system's required pressure, for example, does not provide a meaningful operating pressure margin.
One of the most important concepts in fire pump selection is that pressure cannot be evaluated independently from flow.
A fire pump does not operate at one fixed pressure under all conditions. Its performance is represented by a pump curve showing the relationship between flow and pressure.
As flow increases, pump discharge pressure generally decreases.
This means that a pump may produce high pressure at low flow but substantially lower pressure at the flow required by the fire protection system.
For this reason, the correct question is not simply:
"How much pressure can this fire pump produce?"
A better question is:
"How much pressure can this fire pump produce at the required flow?"
For example, a pump might produce a relatively high pressure at churn but provide a different pressure when operating at its rated flow. The hydraulic demand of the fire protection system must therefore be compared with the pump's performance at the relevant flow rate.
This is why pump curves are fundamental to fire pump selection.
Fire pump rated pressure and pressure margin are related, but they are not the same thing.
The rated pressure of a fire pump is associated with its rated flow and rated operating conditions. It is one of the key characteristics used to identify a fire pump.
Pressure margin, on the other hand, describes the difference between available pump performance and system requirements.
For example, consider a system with a calculated demand of 1,000 GPM at 120 psi. A fire pump may be selected with a rated capacity of 1,000 GPM and a rated pressure of 125 psi.
The difference between 125 psi and 120 psi is 5 psi at the stated operating condition. Whether this is appropriate depends on the complete hydraulic design, pump curve, water supply, system components, and applicable requirements.
The rated pressure should therefore not be treated as a universal pressure margin.
Several factors can influence the actual pressure available to a fire protection system.
The first consideration is the calculated demand of the fire protection system.
Sprinklers, standpipes, hose stations, hydrants, and other fire protection equipment can create different flow and pressure requirements. The most demanding hydraulic condition should be considered when selecting the pump.
Elevation has a direct effect on required pressure.
When water must be delivered to higher floors or elevated equipment, additional pressure is required to overcome the elevation difference.
For tall buildings and industrial facilities, elevation can therefore become a major part of the overall pressure requirement.
Water loses pressure as it flows through pipes.
Pipe diameter, length, internal surface characteristics, flow rate, fittings, valves, and other components can all contribute to friction loss.
A system with long or complex piping may require significantly more pump pressure than a compact system with short piping.
The fire pump does not operate in isolation from the water supply.
Available suction pressure, tank configuration, municipal water conditions, suction piping, and other supply characteristics can affect the pressure available to the pump.
A pump should therefore be selected based on the complete water supply and system design rather than only its nameplate rating.
The actual pump curve is critical.
Two pumps with the same nominal flow and pressure rating may have different performance characteristics across their operating ranges.
Pump selection should consider the required operating point and the complete certified or tested performance information applicable to the product.
Electric motors and diesel engines must be capable of reliably driving the pump under the required operating conditions.
For diesel fire pump systems, engine performance can be affected by factors such as ambient conditions, altitude, fuel quality, cooling, ventilation, and maintenance.
For electric fire pumps, the power supply and electrical characteristics must be appropriate for the selected motor and controller.
No.
This is a common misconception in fire pump selection.
It may appear that selecting a pump with substantially higher pressure provides greater safety. However, excessive pressure can create additional design considerations.
System components such as sprinklers, valves, piping, fittings, and other equipment have pressure ratings. If the pressure generated by the pump is higher than necessary, the system may require additional pressure management or appropriately rated components.
Excessive pressure can also increase the complexity and cost of the system.
The goal should be to achieve the required hydraulic performance with an appropriate operating margin rather than simply selecting the highest-pressure pump available.
When selecting a fire pump, engineers should begin with the hydraulic demand of the fire protection system.
A typical evaluation should consider:
The selected pump should then be evaluated at the required flow rather than only at churn or another convenient operating point.
For a fire pump manufacturer, this is also why performance testing is an essential part of quality control. Pump performance needs to be verified against the expected hydraulic characteristics of the product.
If the calculated pressure margin is insufficient, several engineering solutions may be considered.
One option is selecting a fire pump with a more suitable pressure rating or performance curve.
Another approach may involve reducing system pressure losses through appropriate pipe sizing, improved piping configuration, or reduction of unnecessary resistance.
The water supply arrangement may also be reviewed. In some applications, changes to the suction arrangement or water storage configuration can affect overall pump performance.
However, pressure margin should not be increased without reviewing the complete system. Simply increasing pump pressure may create excessive pressure elsewhere in the system.
The best solution is the one that provides reliable hydraulic performance while maintaining compatibility with the entire fire protection system.
Several mistakes can lead to incorrect pump selection.
Mistake 1: Looking only at shutoff pressure
Churn or shutoff pressure does not represent pump performance at the required operating flow.
Mistake 2: Ignoring elevation
A pump that appears adequate at ground level may not provide sufficient pressure at an elevated discharge point.
Mistake 3: Ignoring friction losses
Long pipe runs, fittings, valves, and other components can significantly affect required pressure.
Mistake 4: Selecting an oversized pump without reviewing the system
Higher pressure and flow are not automatically better.
Mistake 5: Comparing pressure values at different flow rates
Pressure margin must be evaluated at comparable operating conditions.
Mistake 6: Treating a fixed percentage as a universal requirement
There is no single pressure-margin percentage that is automatically appropriate for every fire protection system. The required approach depends on the system design, applicable standards, project specifications, and authority having jurisdiction.
Hydraulic calculations and pump selection are essential, but actual performance verification is equally important.
A properly equipped fire pump manufacturer should have the capability to test pump performance across relevant operating conditions.
Performance testing can help verify key characteristics such as flow, pressure, motor or engine performance, and overall pump operation.
For fire pump manufacturers, comprehensive testing also supports quality control during production and helps ensure that the finished product performs consistently with its intended design.
For projects involving certified fire pumps, testing and documentation should also follow the applicable certification and project requirements.
.jpg)
Fire pump pressure margin is essentially the difference between the pressure a pump can provide and the pressure required by the fire protection system at the relevant operating condition.
Understanding this concept helps engineers, contractors, distributors, and facility owners make better decisions when evaluating fire pump performance.
A reliable fire pump system should not be designed around pressure alone. Flow, hydraulic demand, elevation, friction loss, water supply, pump curves, driver performance, component pressure ratings, and applicable fire protection requirements all need to be considered together.
For fire pump manufacturers, accurate hydraulic design, consistent manufacturing, certified product performance, and comprehensive testing are all important parts of delivering dependable fire protection equipment.
