In any fire protection system, the fire pump is the heart that ensures an adequate and reliable flow of water when it is most needed. However, a fire pump is only as effective as the water supply that feeds it. Without sufficient water quantity and pressure, even the most advanced fire pump system cannot perform as intended. Understanding the minimum water supply requirements for fire pumps is essential for system designers, building owners, and engineers who aim to comply with NFPA 20 and local fire codes.
This article will discuss the key parameters that define minimum water supply requirements for fire pumps, including source selection, pressure and flow criteria, duration, and practical design considerations.

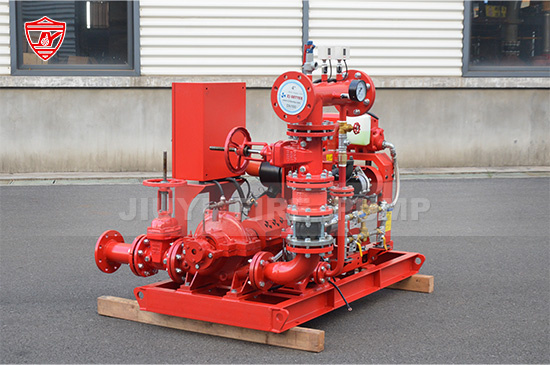

The purpose of a fire pump is to boost the pressure of water within a fire protection system—whether for sprinklers, hydrants, or hose reels—to ensure enough water reaches the fire area with adequate flow and pressure.
If the water supply is insufficient, the entire system’s reliability is compromised. Insufficient water can cause:
Low pressure at hose outlets or sprinkler heads.
Incomplete fire suppression, allowing flames to spread.
Cavitation within the pump, leading to mechanical damage.
Failure to meet NFPA or local authority requirements, resulting in non-compliance.
Therefore, ensuring that the water supply is both adequate and sustainable is a non-negotiable part of fire pump design.
The NFPA 20: Standard for the Installation of Stationary Pumps for Fire Protection sets the benchmark for determining water supply requirements. According to NFPA 20, the fire pump must have a reliable and sufficient water source capable of supplying the required flow rate (GPM or L/min) and pressure (PSI or bar) for the duration of the fire event.
The code also emphasizes that the water supply should be able to sustain operation for at least the required duration of the most demanding fire protection system—typically aligned with NFPA 13 (for sprinklers) or NFPA 14 (for standpipe systems).
The minimum water supply requirement is primarily defined by two factors:
The required flow rate depends on the system type and the building’s fire risk classification.
Sprinkler systems: Determined by the system demand area and density (e.g., 500–1500 GPM for most commercial buildings).
Standpipe systems: Typically require 500 GPM for the first standpipe, plus 250 GPM for each additional one, up to a total of 1000 GPM.
Combined systems: Use the higher of the two (sprinkler or standpipe) demands.
The fire pump must deliver sufficient pressure at the most remote point of the system. The residual pressure should meet system design requirements after accounting for all losses in piping, fittings, and elevation.
For instance, a typical fire pump may be rated at 750 GPM @ 100 PSI or 2000 GPM @ 150 PSI, depending on building size and height.
Another crucial aspect is the duration for which the water supply must sustain the required flow and pressure. NFPA 22 (Standard for Water Tanks for Private Fire Protection) specifies durations based on the system type:
Light hazard occupancies: Minimum 30 minutes.
Ordinary hazard occupancies: Minimum 60–90 minutes.
High hazard occupancies: Minimum 90–120 minutes.
For large industrial or storage facilities, the duration can extend to 2 hours or more, ensuring continuous firefighting capacity before external assistance arrives.
NFPA 20 allows multiple water sources, but each must be reliable and capable of providing adequate flow and pressure. The main types include:
A gravity-fed tank or suction tank provides a stable water source directly connected to the fire pump suction. The tank’s usable volume must meet the system’s required duration and flow rate.
When connected to a city water system, the supply must be verified through a hydrant flow test to confirm that the available flow and pressure meet the design demand—even during peak usage periods.
For facilities with access to natural water bodies, the intake design must prevent sediment, debris, or air from entering the pump. Suction strainers and foot valves are often used to ensure clean and stable suction conditions.
Some systems combine sources, such as municipal water supplemented by a suction tank, to ensure redundancy and reliability in case of supply interruptions.
The fire pump must operate with adequate Net Positive Suction Head (NPSH) to prevent cavitation. Cavitation can severely damage pump impellers and reduce efficiency.
To maintain safe suction conditions:
The water level in the tank or source should always be above the pump inlet.
The suction piping should be as short and straight as possible.
The suction pressure at the pump should not drop below the required NPSH available (NPSHA).
For vertical turbine fire pumps, NPSH is typically not an issue since the pump impellers are submerged in the water source.
When determining the required tank capacity or reservoir volume, the following equation provides a simple estimation:
Required Volume (gallons) = Flow Rate (GPM) × Duration (minutes)
For example:
If the required fire flow is 1000 GPM and the duration is 90 minutes:
1000 × 90 = 90,000 gallons
This tank must be designed with additional capacity to account for unusable volume (below suction pipe level) and potential leakage.
Before finalizing the fire pump design, the water supply must be tested and verified to ensure consistent performance. Verification steps include:
Conducting flow tests at fire hydrants or test headers.
Measuring static, residual, and flow pressures.
Simulating worst-case scenarios, such as simultaneous domestic use.
Reviewing seasonal or drought impacts for natural sources.
NFPA 25 (Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems) requires periodic testing to ensure that both the water supply and fire pump continue to perform as designed.
When designing or installing fire pumps, several practical factors influence water supply adequacy:
Elevation difference: Buildings located on slopes or high ground require additional head pressure.
Friction losses: Long or undersized piping can cause significant pressure drops.
Future expansion: Always plan for potential increases in system demand.
Redundancy: Dual water sources or backup pumps enhance system reliability.
It’s also essential to coordinate with local authorities and insurers to ensure compliance with both NFPA 20 and AHJ (Authority Having Jurisdiction) requirements.
Many fire system failures stem from poor understanding or underestimation of water supply needs. Common mistakes include:
Relying solely on municipal supply without verifying actual capacity.
Incorrect suction pipe sizing or excessive suction lift.
Using a tank volume below the required duration.
Ignoring pressure losses in complex piping layouts.
Lack of routine inspection and maintenance of water sources.
Avoiding these pitfalls ensures that your fire pump system operates effectively during an emergency.
The minimum water supply requirement for fire pumps is more than a compliance checkbox—it is a fundamental factor in the performance and reliability of your entire fire protection system. A properly designed water supply ensures that your fire pump can deliver the necessary flow and pressure under all emergency conditions.
Whether sourced from a municipal main, tank, or reservoir, the supply must be reliable, sustainable, and sufficient to meet NFPA 20 standards. By thoroughly evaluating water source capacity, suction conditions, and duration, designers and building owners can ensure that their fire protection systems will function as intended when lives and property are at stake.
