In fire protection systems, reliability is non-negotiable. Every component must work flawlessly when a fire emergency occurs — especially the fire pump. But how can you ensure your fire pump system operates exactly as intended during emergencies? This is where the fire pump controller sequence test comes into play.
A fire pump controller sequence test is a crucial procedure that verifies the fire pump and its controller respond correctly to simulated fire conditions. It ensures that each part of the system — from the pressure sensors to the start-up sequence of the motor or diesel engine — operates in proper order, exactly as required by NFPA 20 and other international fire safety standards.
This article explains what a fire pump controller sequence test is, why it’s important, and how it’s conducted to guarantee the reliability of your fire protection system.
Before diving into the testing procedure, it’s important to understand the role of the fire pump controller itself.
A fire pump controller is an automatic device that receives signals from pressure sensors or other fire detection systems. When a pressure drop occurs in the sprinkler or standpipe system (typically caused by an open sprinkler head), the controller automatically starts the fire pump to restore system pressure and ensure water is delivered where it’s needed most.
Depending on the system, there are typically two types of controllers:
Electric Fire Pump Controller – Starts and stops an electric motor-driven fire pump.

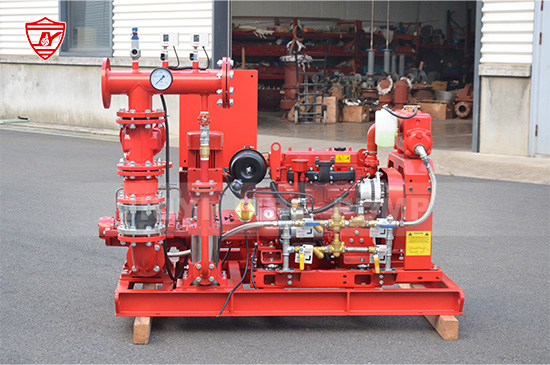

Diesel Fire Pump Controller – Controls a diesel engine that drives the fire pump.
Each controller is designed with multiple automatic and manual start functions, alarms, and monitoring features to ensure dependable operation under any emergency condition.
The sequence test serves several key purposes:
Verification of Automatic Operation: Confirms that the pump automatically starts and runs when system pressure drops.
Validation of Signal Flow: Ensures the pressure switches, sensors, relays, and starter circuits communicate correctly.
Safety Assurance: Checks that all safety interlocks and alarm features function properly.
Compliance: Demonstrates that the fire pump system meets NFPA 20, NFPA 25, and other applicable standards.
Reliability Testing: Proves that the fire pump controller can handle real emergency conditions without manual intervention.
By performing this test regularly, building owners, facility managers, and fire protection professionals can prevent costly system failures and ensure consistent fire protection readiness.
Fire pump sequence tests are typically performed during the following occasions:
After Installation: To verify that the new system has been properly installed and wired.
During Commissioning: As part of the initial system acceptance testing before the system goes into service.
After Maintenance or Repair: Whenever controller components, sensors, or wiring are replaced.
Routine Inspections: Many fire safety standards recommend performing operational tests annually to ensure continued reliability.
The sequence test involves simulating fire conditions to observe how the controller and pump respond. The test sequence varies slightly between electric and diesel fire pump systems, but the basic principles remain the same.
Let’s break it down step by step.
Before starting the test:
Ensure all personnel understand the testing plan.
Verify that the system is connected to a water source.
Confirm that the discharge valve is open or connected to a test header.
Check all electrical connections, battery levels (for diesel systems), and lubrication.
Notify the facility that testing is underway to prevent false alarms.
The first step in initiating the test is to simulate a pressure drop in the system. This mimics the condition that would occur during a real fire when water starts flowing from an open sprinkler head.
This is usually done by:
Slowly opening the test valve or the drain/test connection on the system, allowing water to flow.
As system pressure decreases below the start threshold, the pressure switch sends a signal to the fire pump controller.
Upon receiving the pressure drop signal, the controller automatically initiates the fire pump.
For electric fire pumps, the controller energizes the motor starter and the pump begins running immediately.
For diesel fire pumps, the controller sends a start command to the diesel engine, which should crank and start within the specified time (usually less than 15 seconds).
Observers should note how quickly the pump starts, any abnormal sounds, and the system pressure recovery.
As the pump operates, the pressure in the system should rise and stabilize at the designed operating pressure.
This confirms that the pump and controller are functioning properly and that the pressure feedback circuit works correctly.
Check that:
The controller indicates the “Pump Running” status.
System pressure returns to the normal range.
No alarm or fault conditions are displayed.
Depending on the system type, fire pumps may stop automatically or require manual shutdown.
Electric pumps: In some systems, the controller can automatically stop the pump once pressure stabilizes above the stop setting, provided all start signals are cleared.
Diesel pumps: These generally require manual shutdown after the test, as automatic stop is often disabled to ensure safety during real fires.
During the sequence test, verify that the stopping sequence matches design requirements and safety standards.
A key part of the sequence test is ensuring that all alarms, indicators, and logs function correctly.
Verify that the following are displayed or recorded:
Pump running indicator
Low pressure alarm
Power failure alarm
Phase reversal (for electric systems)
Engine fail-to-start (for diesel systems)
Low battery voltage (diesel systems)
System event log or data recorder entries
In addition to automatic operation, the controller must be tested for manual control functionality.
Operators should manually start and stop the pump using the controller’s switches or push buttons to confirm that manual override is operational.
This step ensures that even if automatic circuits fail, the system can still be operated safely by personnel.
After completing the sequence test, all results should be documented carefully, including:
Date and location of the test
Test participants and responsible technician
Pressure readings before, during, and after the test
Response times and system behavior
Alarm and indicator status
Any abnormalities or corrective actions taken
Comprehensive documentation ensures traceability and compliance with inspection authorities and insurance requirements.
Fire pump controller sequence tests should not be viewed as a one-time activity. Regular testing ensures continued operational reliability and compliance with NFPA 25 (Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems).
Key benefits include:
Early detection of faults: Identifies wiring errors, component failures, or calibration issues before an emergency occurs.
Improved reliability: Ensures pumps respond instantly when a fire happens.
Compliance: Satisfies insurance, safety, and legal requirements.
Peace of mind: Confirms that your fire protection system is ready at all times.
Technicians frequently uncover the following issues during testing:
Incorrectly calibrated pressure switches
Loose electrical connections
Delayed engine start in diesel pumps
Faulty alarms or signal lights
Software or control logic errors
Identifying and correcting these problems early helps prevent catastrophic failure during real fire emergencies.
A fire pump controller sequence test is one of the most vital maintenance and verification steps for any fire protection system. It confirms that the controller, pump, and related components function correctly and in the proper order, ensuring reliable system performance when lives and property are on the line.
Whether you operate an electric or diesel fire pump system, conducting regular sequence tests according to NFPA standards guarantees compliance, reliability, and safety.
As a professional fire pump manufacturer, we strongly recommend integrating routine controller sequence testing into your maintenance schedule. Consistent testing is not just about compliance—it’s about ensuring that when fire strikes, your system responds instantly and effectively.
