Calculating fire pump flow requirements is one of the most important steps in designing a reliable fire protection system. The fire pump must deliver sufficient water flow to meet the demand of the system while maintaining the pressure required at the most hydraulically demanding point.
Choosing a fire pump based only on the building size or selecting the largest available pump is not a reliable approach. The required flow should be determined from the actual fire protection system design, including sprinkler demand, hose stream demand, standpipes, hydrants, elevation, friction losses, water supply, and applicable fire protection standards.
For engineers, fire protection contractors, consultants, and project owners, understanding how fire pump flow is calculated helps ensure that the selected pump matches the project requirements.

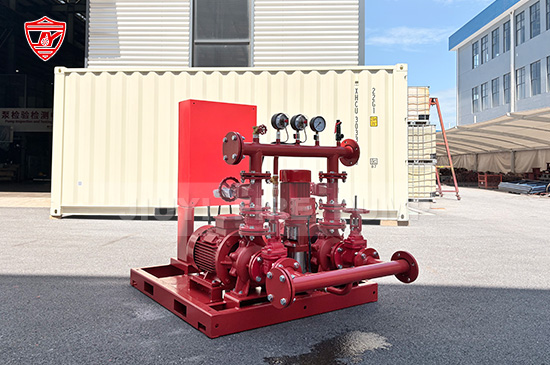

.jpg)
Fire pump flow is the volume of water that a fire pump can deliver to a fire protection system over a specific period of time.
Common units include:
GPM: gallons per minute
LPM: liters per minute
m³/h: cubic meters per hour
For example, a fire pump may be rated at 500 GPM, 750 GPM, 1,000 GPM, or several thousand GPM depending on the application.
However, the rated flow of a fire pump should not be selected independently. It needs to correspond to the calculated water demand of the fire protection system.
A pump rated for 1,000 GPM is not automatically appropriate for a building simply because the building is large. Similarly, a small facility may have a high water demand because of its occupancy hazard or special fire protection requirements.
The correct fire pump flow is determined by the system's hydraulic demand.
The purpose of a fire pump is to provide the required water supply when the available water source cannot provide sufficient flow and pressure by itself.
If the fire pump is undersized, the system may not deliver enough water to the required sprinklers, hydrants, hose stations, or standpipes.
If the pump is significantly oversized, the system may experience unnecessary pressure and equipment costs. Oversizing can also create challenges with system components that are not designed for excessive pressure.
Correct fire pump sizing therefore requires a balance between water flow, pressure, system demand, and the requirements of the applicable fire protection standard.
Before calculating the required fire pump flow, identify all fire protection systems that may require water from the pump.
Depending on the project, these may include:
Automatic sprinkler systems
Standpipe systems
Hose stations
Fire hydrants
Deluge systems
Water spray systems
Foam systems
Special hazard systems
Not every system necessarily operates at the same time. The design must determine which systems or areas represent the required design scenario.
The applicable fire protection standard and the authority having jurisdiction should be considered when determining which water demands need to be included.
For many fire protection systems, sprinkler demand is a major component of the required water flow.
Sprinkler system hydraulic calculations generally consider factors such as:
Hazard classification
Design area
Required density
Number of sprinklers operating in the design area
Sprinkler discharge characteristics
Available pressure
Pipe size
Pipe length
Fittings and valves
Elevation changes
A simplified relationship commonly used for an individual sprinkler is:
Q = K√P
Where:
Q = sprinkler flow rate
K = sprinkler discharge coefficient
P = pressure at the sprinkler
The actual hydraulic calculation is more comprehensive because the sprinkler system consists of multiple branches, fittings, pipes, and elevation changes.
The total sprinkler demand is determined by calculating the water flow required by the hydraulically most demanding design area.
In many fire protection designs, sprinkler demand is not the only water requirement.
A hose stream allowance may also need to be included depending on the system design, occupancy, and applicable standard.
A simplified representation of the calculation is:
Total Water Demand = Sprinkler Demand + Hose Stream Demand
For example, if the calculated sprinkler demand is 500 GPM and the required hose stream allowance is 250 GPM, the combined demand would be:
500 GPM + 250 GPM = 750 GPM
This does not mean that every project requires these exact values. The actual hose allowance must be determined from the applicable design requirements.
Flow alone is not enough to select a fire pump.
The pump must provide the required flow at the required pressure.
The required pressure is affected by several factors, including:
Elevation
Pipe friction
Fittings
Valves
Sprinkler requirements
Hydrant requirements
Standpipe requirements
Required residual pressure
Available water supply pressure
A basic concept for determining required pump pressure is:
Required Pump Pressure = Required System Pressure + Pressure Losses + Elevation Loss − Available Suction Pressure
This simplified relationship helps illustrate why fire pump selection requires both flow and pressure calculations.
For a real project, the complete hydraulic calculation should be performed using the actual piping network and system components.
Elevation can have a significant effect on fire pump requirements.
Water pressure decreases as elevation increases. Therefore, a building with multiple floors may require substantially more pump pressure than a single-story facility.
The higher the sprinkler or hose outlet is above the pump, the greater the static pressure loss caused by elevation.
As a general hydraulic principle, approximately 0.433 psi of pressure is associated with each foot of water elevation, or approximately 9.81 kPa per meter of water elevation.
For example, if a system component is located significantly above the pump, the fire pump must provide additional pressure to overcome this elevation difference.
This is particularly important in high-rise buildings, warehouses with high storage racks, and facilities with elevated process areas.
Water loses pressure as it flows through pipes.
The amount of friction loss depends on factors such as:
Pipe diameter
Pipe length
Pipe material
Internal pipe roughness
Water flow rate
Fittings
Valves
Flow direction changes
Hydraulic calculations commonly use recognized formulas and methods to determine these losses.
The Hazen-Williams equation is widely used for water-based fire protection hydraulic calculations:
P = 4.52 × Q¹·⁸⁵² / (C¹·⁸⁵² × d⁴·⁸⁷) × L
The exact form and units depend on the calculation method being used.
Where the variables represent flow, pipe roughness coefficient, pipe diameter, and pipe length.
For actual fire protection design, engineers should use the appropriate calculation method, units, pipe characteristics, and applicable standard rather than relying on simplified estimates.
The fire pump does not operate independently from the water source.
The available water supply should be evaluated before determining the final pump requirements.
Possible water sources include:
Municipal water supply
Fire water storage tank
Reservoir
Underground water tank
Dedicated fire water system
The available supply should be evaluated for both flow and pressure.
For example, if the water supply can provide part of the required flow and pressure, the fire pump may only need to supplement the available supply.
However, if the water source has insufficient pressure or flow, the fire pump must provide the additional performance required by the system.
Water supply flow tests and pressure measurements can therefore be important inputs for fire pump sizing.
After calculating the system demands, determine the required design flow.
A simplified example can illustrate the process.
Assume a project has:
Sprinkler demand: 600 GPM
Hose stream allowance: 250 GPM
The calculated demand would be:
600 + 250 = 850 GPM
The project would therefore require a fire pump capable of meeting the applicable design demand at the required pressure.
The next available standard pump rating may be considered depending on the pump manufacturer's available models and the applicable requirements.
However, the final selection should not be based on flow alone. The pump curve must be reviewed to confirm that the selected pump provides the required pressure at the required flow.
Once the required flow and pressure have been calculated, compare the duty point with the fire pump performance curve.
The pump curve shows how the pump performs at different flow rates.
Important points to review include:
Rated flow
Rated pressure
Shutoff pressure
Pressure at rated flow
Pressure at higher flow
Maximum expected system demand
The pump should be capable of delivering the required performance within the applicable acceptance criteria.
A fire pump manufacturer should provide a certified or tested performance curve for the selected model so that engineers can verify its suitability for the project.
One common mistake is treating pump size as a simple flow number.
A fire pump rated at 750 GPM, for example, cannot be evaluated properly without knowing its pressure performance.
Two pumps may both have a rated flow of 750 GPM but have different pressure characteristics.
The correct selection therefore requires both:
Flow + Pressure
The pump must satisfy the required duty point rather than simply matching a nominal GPM value.
Large or critical facilities may require more than one fire pump.
A system may use combinations such as:
Electric fire pump
Diesel fire pump
Jockey pump
The main fire pumps may provide the required fire flow, while the jockey pump maintains system pressure during normal conditions and compensates for small pressure losses.
For larger facilities, the fire protection design may include multiple water supplies or pump arrangements. The required flow for each pump should be determined from the applicable system design and project requirements.
Once the required flow has been established, several additional factors should be evaluated.
Depending on the application, the project may require a horizontal split case pump, end suction pump, vertical turbine pump, or another suitable fire pump configuration.
The pump may be driven by an electric motor or diesel engine depending on the available power supply, project requirements, and applicable regulations.
Projects may specify particular certifications or approvals, such as UL Listed or FM Approved equipment. The required certification should be confirmed before selecting the pump.
Available space, suction conditions, water source elevation, environmental conditions, ventilation, exhaust requirements, and maintenance access can influence the final configuration.
Performance testing is important for confirming that the manufactured pump meets the specified flow and pressure requirements.
Several mistakes can lead to incorrect pump selection.
Building area does not directly determine fire pump flow. Hazard classification and hydraulic demand are much more important.
Where applicable, hose stream demand should be included in the overall water demand calculation.
A pump must provide both the required flow and pressure.
High-elevation systems can require substantially greater pump pressure.
Pipe size, length, fittings, and valves all influence pressure loss.
The pump should be selected after the system demand has been properly established.
A pump that meets the hydraulic requirement may still be unsuitable if the project requires specific certification or approval.
Before requesting a fire pump quotation, prepare the following information:
Project type and occupancy
Protected area
Hazard classification
Sprinkler design density
Hydraulic design area
Calculated sprinkler demand
Hose stream demand
Required system flow
Required pressure
Elevation difference
Pipe friction losses
Available water supply
Suction pressure
Water tank capacity
Required fire pump type
Electric or diesel driver
Required certification
Installation conditions
Applicable fire protection standards
Required testing and documentation
Providing this information to a fire pump manufacturer allows the manufacturer to recommend equipment based on actual project requirements rather than assumptions.

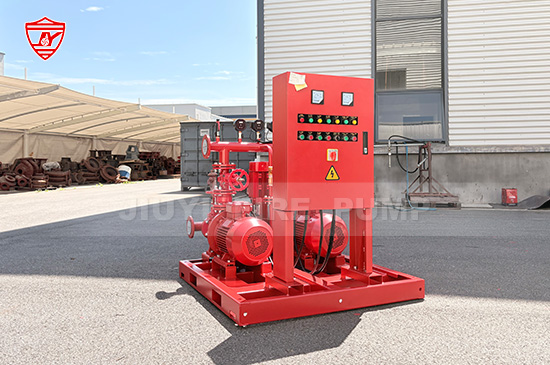

.jpg)
Calculating fire pump flow requirements is a fundamental part of designing an effective fire protection system. The process starts with determining the water demand of the protected area and then considering sprinkler flow, hose stream demand, pressure requirements, elevation, friction losses, and available water supply.
The final fire pump selection should be based on the complete hydraulic duty point rather than flow alone. Engineers should also consider pump type, driver, certification, installation conditions, testing requirements, and compatibility with the complete fire protection system.
For fire pump manufacturers, accurate project information is essential for selecting the correct equipment. By combining hydraulic calculations with reliable pump performance data and appropriate testing, project teams can select a fire pump that meets the required flow and pressure and supports the overall reliability of the fire protection system.
