Selecting the right fire pump is one of the most important decisions in the design of a fire protection system. A fire pump must deliver the required water flow at the required pressure under defined operating conditions. To determine whether a pump is suitable, engineers, contractors, and system designers need to understand the fire pump duty point.
The duty point is a fundamental reference for fire pump selection. It connects the hydraulic requirements of the fire protection system with the performance capabilities of the pump. Choosing a pump based only on horsepower, nominal flow, or discharge pressure can result in an unsuitable system.
This article explains what a fire pump duty point is, how flow and pressure determine the duty point, how to read a fire pump performance curve, and what engineers should consider when selecting a fire pump for a fire protection system.
.jpg)
A fire pump duty point is the specific combination of flow rate and pressure that a fire pump is expected to provide for a particular fire protection system.
It is commonly expressed as:
Flow + Pressure
For example, a project may require a fire pump to deliver:
1,000 GPM at 100 PSI
In this example:
Depending on the project and local engineering practices, pressure may also be expressed in bar, kPa, or meters of water head.
The duty point is not necessarily the only operating condition that the pump must satisfy. Fire pumps are generally evaluated across a range of operating conditions, because actual fire protection systems can operate at different flow rates depending on the number and type of sprinklers, hydrants, hose stations, standpipes, or other water-based systems operating simultaneously.
The duty point provides a direct way to compare the hydraulic requirements of the fire protection system with the actual performance of a pump.
If the selected pump cannot produce sufficient flow or pressure at the required operating condition, the fire protection system may not perform as designed.
On the other hand, selecting a pump that is significantly larger than necessary can create other problems, including excessive pressure, inefficient system operation, higher equipment costs, and potential compatibility issues with system components.
A correctly established duty point helps engineers and contractors:
For fire pump manufacturers, the duty point is also one of the most important pieces of information needed to recommend an appropriate pump model.
Flow rate describes how much water the fire pump needs to deliver.
Common units include:
The required flow depends on the hydraulic design of the fire protection system.
For example, a sprinkler system may have a specific design discharge requirement, while a hydrant or standpipe system may have different flow requirements. In some projects, multiple systems may need to be considered simultaneously according to the applicable design criteria.
When determining the required pump flow, engineers should consider the actual hydraulic demand rather than simply selecting a common pump size.
For example, if the hydraulic calculation indicates a required flow of 750 GPM, selecting a pump solely because it is marketed as a "1,000 GPM fire pump" does not automatically mean that the pump is the best choice. The pump must also provide the required pressure at the actual system demand.
Pressure is the other essential component of the fire pump duty point.
The pump must provide enough pressure to overcome the pressure losses in the system and deliver the required residual pressure at the hydraulically most demanding point.
System pressure requirements can be affected by:
For example, a high-rise building typically requires substantially more pump pressure than a low-rise building because the pump must overcome the static elevation difference in addition to friction and other system losses.
Therefore, a pump with a high flow rating is not necessarily suitable if it cannot provide the required pressure at that flow.
One common misunderstanding is that the pump's rated capacity and the system duty point are always exactly the same.
The rated capacity is the nominal flow associated with the fire pump's rated performance. The duty point represents the specific flow and pressure required by the system.
For example, a fire pump may have a rated capacity of 1,000 GPM, while the hydraulic demand of a particular project may be 850 GPM at a specific pressure.
The pump must be evaluated based on its complete performance characteristics, not just its nameplate rating.
This is why reviewing the manufacturer's certified or approved performance data is essential during pump selection.
A fire pump performance curve shows how the pump's pressure or head changes as flow increases.
Typically:
At shutoff, the pump produces its maximum pressure with zero flow. As flow increases, the available pump pressure generally decreases.
A simplified example might look like this:
| Flow | Pump Pressure |
|---|---|
| 0 GPM | 125 PSI |
| 500 GPM | 115 PSI |
| 1,000 GPM | 100 PSI |
| 1,500 GPM | 80 PSI |
If the system duty point is 1,000 GPM at 100 PSI, the duty point would be located at the intersection of 1,000 GPM flow and 100 PSI pressure.
This point should fall within the pump's acceptable performance range and comply with the applicable fire pump requirements.
Reading a duty point from a pump curve involves several basic steps.
Start with the hydraulic calculation and identify the required flow rate.
For example:
Required flow = 1,000 GPM
Next, identify the pressure required at the pump discharge or the relevant hydraulic reference point.
For example:
Required pressure = 100 PSI
Find 1,000 GPM on the horizontal axis and 100 PSI on the vertical axis.
The intersection represents the required duty point.
Place the duty point against the manufacturer's pump performance curve.
The pump should be capable of providing the required performance under the applicable operating conditions.
Do not evaluate only one point. The pump should also be checked at other relevant conditions, including rated flow and higher-flow operating conditions required by the applicable standard or project specification.
The duty point and shutoff pressure are not the same thing.
Duty point represents a defined flow and pressure condition.
Shutoff pressure is the pressure produced by the pump when there is essentially no flow through the pump.
For example, a pump may have:
The pump does not normally operate at shutoff during a fire event. Shutoff pressure is nevertheless important because it affects the maximum pressure that components connected to the fire pump may experience.
Understanding both values is therefore important when evaluating the entire fire protection system.
The duty point is one of the most important inputs for selecting the correct fire pump size.
However, pump sizing should not be based on flow alone.
Consider two pumps:
Pump A: 1,000 GPM at 100 PSI
Pump B: 1,000 GPM at 70 PSI
If the project requires 1,000 GPM at 100 PSI, Pump A may be suitable while Pump B would not meet the pressure requirement.
Similarly, a pump producing excessive pressure may require additional consideration because excessive system pressure can affect piping, valves, sprinklers, hydrants, and other components.
The goal is not simply to choose the largest available pump. The goal is to select a pump whose performance appropriately matches the system's hydraulic requirements.
The same basic duty point concept applies to both electric and diesel-driven fire pumps.
For an electric fire pump, the selected motor must have sufficient power to drive the pump across the required operating range.

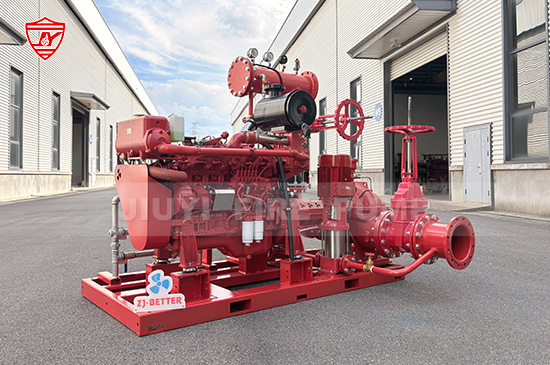

For a diesel fire pump, the diesel engine must provide sufficient power under the applicable operating conditions.
This means the complete fire pump package should be evaluated, including:
For packaged fire pump systems, proper matching between the pump and driver is particularly important.
Several mistakes can occur when the duty point is not properly understood.
A pump may provide the required flow but fail to provide sufficient pressure.
A pump may provide adequate pressure but have insufficient flow capacity.
Elevation can have a significant effect on the pressure required from the pump.
A pump labeled "750 GPM" or "1,000 GPM" does not provide the complete information needed for selection.
The complete performance curve provides much more information than a single rated capacity.
A significantly oversized pump may produce excessive pressure and create system design challenges.
The pump and driver must be properly matched. A suitable pump with an incorrectly selected motor or diesel engine does not result in a suitable fire pump package.
A professional fire pump manufacturer should be able to provide detailed technical information to support pump selection.
This may include:
For projects requiring certified fire protection equipment, engineers and contractors should verify that the proposed equipment meets the applicable certification and project requirements.
Manufacturing quality and performance testing are also important because the actual pump must deliver consistent performance corresponding to its specified characteristics.
A fire pump is not an isolated piece of equipment. It is a critical component within a complete fire protection system.
The pump duty point must therefore be considered together with:
A properly selected duty point helps ensure that the fire pump can support the hydraulic requirements of the complete system.
Before selecting a fire pump, confirm the following:
These questions help reduce selection errors and provide a more reliable foundation for fire protection system design.
.jpg)
The fire pump duty point is one of the most important concepts in fire pump selection. It defines the relationship between the required water flow and the pressure that the pump must provide.
Understanding the duty point makes it easier to evaluate pump performance curves, select the correct pump and driver, and ensure that the equipment is appropriately matched to the hydraulic requirements of the fire protection system.
For engineers, contractors, consultants, and fire protection professionals, the key principle is simple: do not select a fire pump based on flow or pressure alone. Evaluate the complete performance relationship between flow, pressure, system demand, and pump capability.
