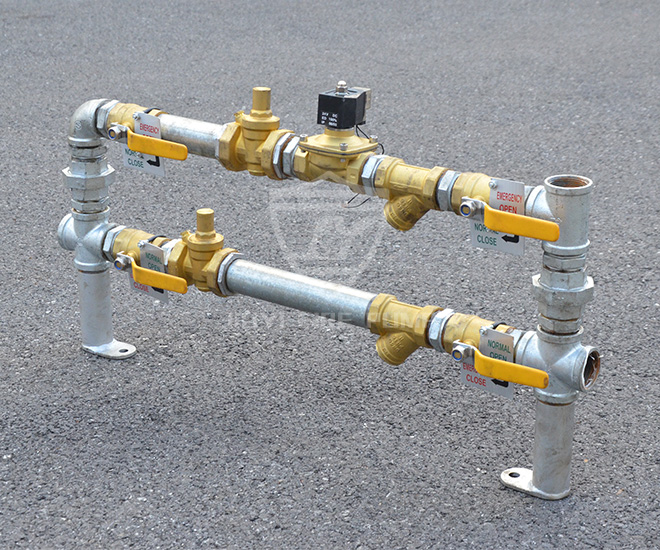

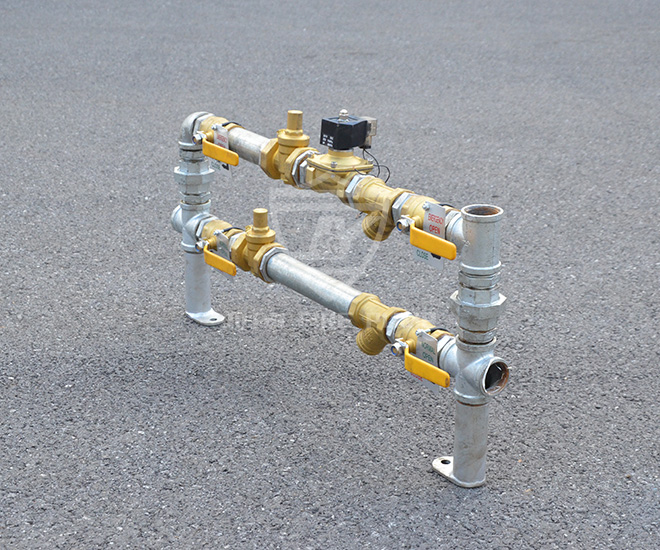

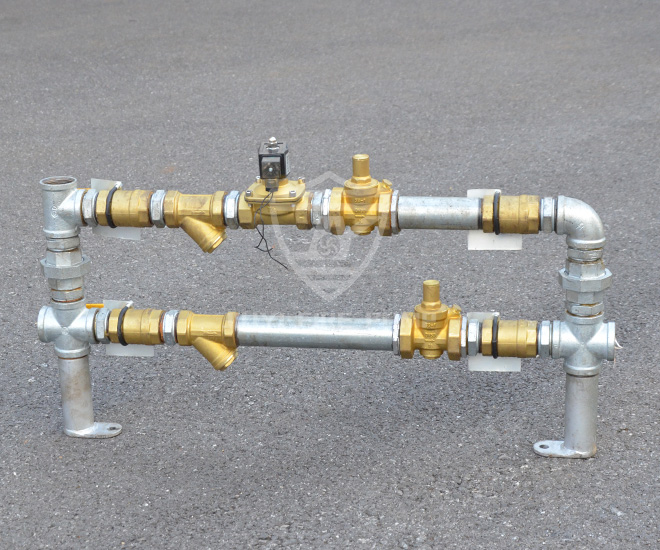

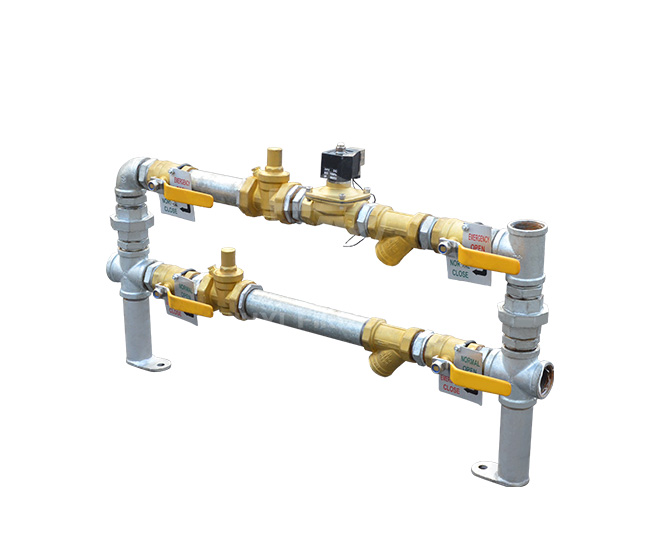

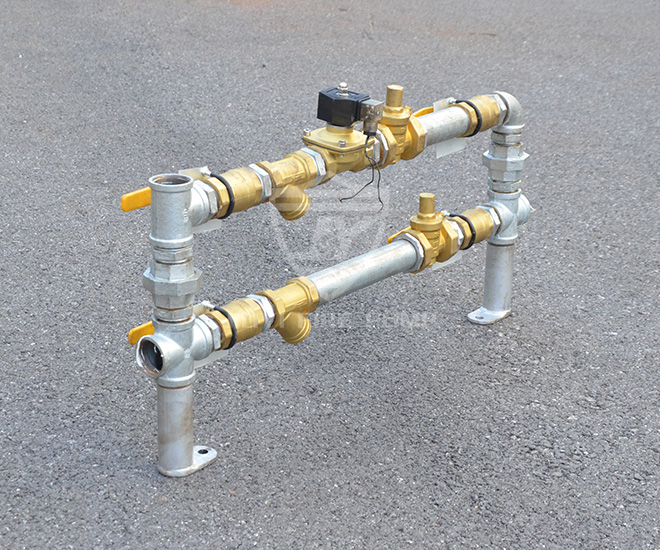

A cooling loop is a piping arrangement that uses water from the fire pump discharge to regulate the diesel engine’s operating temperature. Instead of relying on traditional radiators, which may fail under high-heat or emergency conditions, the cooling loop provides a continuous and reliable cooling source.
A well-engineered cooling loop should balance safety, reliability, and efficiency. Key design factors include:
Orifice Sizing: Too small, and insufficient cooling occurs; too large, and water wastage increases.
Pipe Material: Corrosion-resistant materials such as stainless steel or copper are preferred.
Heat Exchanger Quality: Must withstand long operational hours and high temperatures.
Flow Visibility: A visible discharge stream ensures operators can confirm cooling loop operation instantly.
Drainage: Proper drainage prevents pump room flooding.
When designed correctly, the cooling loop functions seamlessly without operator intervention.
