A fire pump duty point is the specific flow rate and pressure that a fire pump is required to deliver for a particular fire protection system. It is one of the most important parameters when selecting, designing, testing, and operating a fire pump.
For fire safety engineers, contractors, consultants, and building owners, understanding the fire pump duty point helps ensure that the selected pump can provide sufficient water at the pressure required by the sprinkler, hydrant, hose reel, standpipe, or other fire protection system.
A fire pump should not simply be selected based on its maximum flow or maximum pressure. Instead, the pump must be evaluated against the system's hydraulic requirements. The duty point provides the connection between the fire protection system demand and the fire pump's performance.

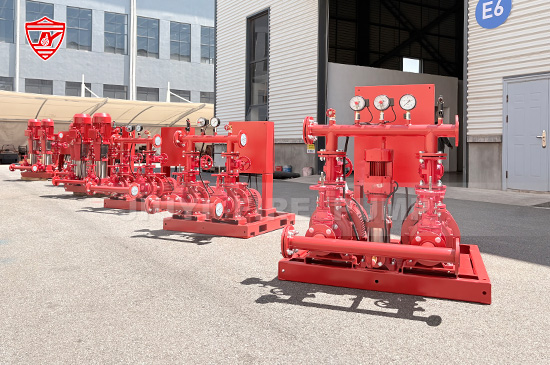

.jpg)
In simple terms, the fire pump duty point is the point on the pump performance curve corresponding to the required flow and total pressure or head.
For example, a fire protection system may require:
Flow: 1,000 GPM
Pressure: 100 PSI
In this case, the fire pump duty point is approximately 1,000 GPM at 100 PSI.
In metric units, the same requirement might be expressed as:
Flow: 227 m³/h
Pressure: 6.9 bar
The exact units used depend on the project, country, applicable standards, and engineering specifications.
The duty point is not necessarily the maximum capacity of the fire pump. A pump may have a rated capacity of 1,000 GPM while operating at a specific pressure at its rated flow. The pump's complete performance must be considered across its operating range.
The duty point is critical because a fire protection system depends on both water quantity and water pressure.
If the flow is insufficient, the fire protection system may not deliver enough water to the protected area. If the pressure is insufficient, sprinklers, hydrants, hose stations, or other devices may not operate at their required performance.
Selecting a pump with excessive capacity can also create problems. A significantly oversized pump may produce excessive pressure, require additional system components, increase energy consumption during routine testing, or create compatibility issues with system components.
Therefore, the goal is not simply to select the largest available fire pump. The goal is to select a pump whose performance is appropriate for the hydraulic requirements of the fire protection system.
A fire pump duty point consists primarily of two parameters:
Flow rate describes how much water the fire pump must deliver within a specific period.
Common units include:
For example, a project specification may require a fire pump to provide 750 GPM, 1,000 GPM, or 1,500 GPM.
The required flow depends on the design of the fire protection system and the hydraulic calculation. Different applications can have very different flow requirements.
A warehouse with a high-hazard sprinkler system may require a different flow rate from a residential building, commercial building, industrial facility, or water supply system.
The second major component is pressure, which represents the energy the pump needs to provide to overcome the system's hydraulic requirements.
Pressure may be specified in:
Pump head is commonly expressed in:
Pressure and head are related, but they are not exactly the same measurement. Pump manufacturers and engineers may use either depending on the project specification and calculation method.
The required pump pressure must account for the pressure needed at the system's hydraulically most demanding point, as well as losses through piping, fittings, valves, elevation changes, and other components.
The duty point normally comes from the hydraulic design of the fire protection system rather than from the pump manufacturer.
A typical process begins with identifying the water demand of the fire protection system.
Engineers may consider:
Hydraulic calculations are then used to determine the flow and pressure required at the pump discharge.
The resulting requirement becomes the basis for fire pump selection.
For example, if the hydraulic calculation determines that the system requires 1,200 GPM at 120 PSI, the fire pump should be evaluated at that operating condition.
One of the most useful tools for understanding duty point is the fire pump performance curve.
A typical pump curve shows the relationship between flow and pressure or head.
As flow increases, the pressure generated by a centrifugal fire pump generally decreases. The curve therefore allows engineers to see how the pump performs at different flow rates.
The duty point can be plotted on this curve.
If the required duty point is:
1,000 GPM at 100 PSI
the engineer can locate 1,000 GPM on the horizontal axis and 100 PSI on the vertical axis. The intersection represents the required operating point.
The pump curve should demonstrate that the selected pump can satisfy this requirement while remaining within the applicable performance requirements.
This is why reviewing only the pump's nameplate rating is not enough. The complete performance curve provides much more useful information about how the pump will operate.
An important concept in fire pump selection is the difference between rated capacity and the actual hydraulic demand.
A fire pump may be rated at 1,000 GPM, but the system's calculated duty point could be below or around that rated flow depending on the project.
The rated flow is a standardized reference point for identifying the pump. The duty point, meanwhile, represents the operating requirement of the particular project.
For this reason, fire pump selection should consider the relationship between:
Rated flow + rated pressure + complete pump performance curve + system duty point
rather than relying on one specification alone.
Another important distinction is between the duty point and shutoff pressure.
Shutoff pressure, sometimes called churn pressure, is the pressure produced by the pump when there is essentially no flow through the pump.
The duty point, on the other hand, represents the required combination of flow and pressure for the fire protection system.
For example, a pump may produce a relatively high pressure at zero flow, while producing a lower pressure at its rated flow.
Both conditions are important when evaluating fire pump performance, but they describe different operating conditions.
Engineers should therefore review the entire pump curve rather than looking only at the pressure at the duty point.
The required duty point is influenced by many factors within the fire protection system.
Water must be lifted to higher floors or elevated areas. The greater the elevation difference, the greater the pressure requirement.
Water loses pressure as it travels through piping. Longer piping systems and smaller pipe diameters can result in greater friction losses.
Elbows, tees, check valves, control valves, strainers, and other components contribute to hydraulic losses.
Fire sprinklers, hydrants, hose stations, and other discharge devices may require a specific minimum pressure to provide the intended water flow.
The available water supply also affects fire pump selection. The pump may need to supplement an existing water supply or provide the required pressure when the available supply cannot meet system demand.
Different fire protection systems can produce different hydraulic requirements. A high-rise building, warehouse, industrial facility, airport, data center, or residential development may require very different fire pump characteristics.
Once the required duty point has been established, the next step is to compare it with available fire pump performance.
A proper selection process should consider:
1. Required flow
Determine the design flow from the hydraulic calculation and project specification.
2. Required pressure
Determine the required pump discharge pressure or total head.
3. Pump performance curve
Check whether the pump can deliver the required flow and pressure.
4. Rated capacity
Confirm that the pump's rated capacity is appropriate for the application.
5. Motor or engine power
Verify that the selected electric motor or diesel engine can provide sufficient power across the required operating range.
6. System compatibility
Consider suction conditions, discharge piping, valves, controllers, electrical supply, fuel system, and other components.
7. Applicable standards and approvals
The project may require compliance with specific fire protection standards, certification requirements, or approval systems.
The required duty point is normally established during system design, but project conditions can change.
Changes in building layout, pipe routing, sprinkler design, elevation, water supply, or system configuration can affect hydraulic requirements.
For example, adding additional floors or extending a fire protection network may increase pressure loss and change the required pump performance.
This is why fire pump selection should be based on the latest approved hydraulic calculations and project specifications.
For a fire pump manufacturer, the duty point is also an important reference during factory testing.
A properly equipped fire pump test facility can evaluate pump performance at different operating conditions. Test data can be compared with the expected pump performance to verify flow, pressure, speed, and other parameters.
Testing can help identify whether the pump performs as expected across its operating range.
For customers, factory testing provides valuable information about the actual performance of the supplied equipment before it is delivered to the project site.
Depending on the project and applicable requirements, testing may involve electric motor-driven pumps, diesel engine-driven pumps, jockey pumps, vertical turbine pumps, split-case pumps, end-suction pumps, or complete fire pump packages.
One common mistake is selecting a pump based only on flow.
A pump that provides the required flow but cannot generate sufficient pressure may not satisfy the system requirement.
Another mistake is focusing only on the rated pressure without checking the required flow.
Engineers should also avoid evaluating only one point on the pump curve. Understanding the pump's performance across its operating range is important for a complete assessment.
Another issue is failing to consider elevation and friction losses. A pump may appear suitable when looking at the required terminal pressure alone, but the pressure required at the pump discharge can be considerably higher after accounting for system losses.
Finally, the pump should be evaluated together with its driver and associated equipment. The pump, motor or diesel engine, controller, valves, and other components must work together as a complete fire protection solution.
.jpg)
The fire pump duty point is the required combination of flow and pressure that a fire pump must deliver for a specific fire protection system. It provides a critical connection between hydraulic system design and fire pump selection.
Understanding the duty point helps engineers, contractors, consultants, and building owners evaluate whether a fire pump is suitable for the intended application.
A reliable selection process should consider the required flow, pressure, pump performance curve, rated capacity, driver power, system losses, water supply, and applicable project requirements.
For fire pump manufacturers, understanding customer duty points is equally important. The correct pump should not simply have a high capacity; it should provide the required performance at the operating conditions defined by the fire protection system.
When selecting a fire pump, always begin with the hydraulic requirements and then match those requirements with verified pump performance. This approach helps create a fire protection system that delivers the required water flow and pressure when dependable performance matters most.
