In any fire protection system, the fire pump plays a critical role in ensuring adequate water supply during emergencies. However, even a perfectly selected fire pump can fail to perform if the suction conditions are not properly designed and maintained. Poor suction conditions often lead to low pressure, cavitation, and system inefficiency, potentially compromising the entire firefighting operation.
In this article, we will explore how to optimize fire pump suction conditions, following best practices and NFPA 20 standards, to achieve maximum efficiency, reliability, and compliance.

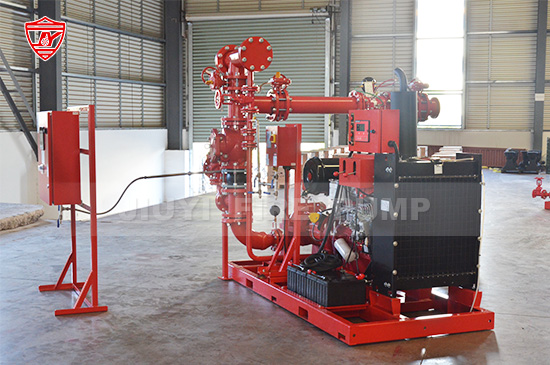

The suction side of a fire pump is responsible for delivering water to the pump impeller without air entrapment or pressure loss. Poor suction conditions can result in:
Inadequate water supply during a fire emergency
Pump cavitation and damage to impellers
Increased vibration and noise
Reduced pump life expectancy
NFPA 20 compliance issues
According to NFPA 20, maintaining optimal suction conditions is essential for ensuring stable flow and avoiding pump performance failures.
The National Fire Protection Association (NFPA) 20 provides strict guidelines for fire pump installation, including suction design. Some key requirements include:
Straight Pipe Length: At least 10 pipe diameters of straight pipe before the pump suction flange.
Pipe Sizing: The suction pipe should be sized so that the velocity does not exceed 15 ft/s to reduce turbulence.
Suction Lift: Preferably avoid suction lift; if unavoidable, maintain proper priming and minimize vertical distance.
Fittings: Elbows and reducers near the pump inlet should be minimized to prevent flow disturbances.
Strainers: Avoid using fine-mesh strainers that can cause excessive friction loss.
By adhering to these standards, you ensure compliance and reduce operational risks.
One of the most critical factors for improving fire pump suction conditions is maintaining sufficient Net Positive Suction Head (NPSH).
NPSH Available (NPSHa): The pressure available at the pump suction.
NPSH Required (NPSHr): The minimum pressure needed by the pump to avoid cavitation.
Best Practice: Always ensure NPSHa > NPSHr by at least 1 meter (3 ft) for safe and efficient pump operation.
Lower the pump installation elevation relative to the water source.
Minimize friction losses in suction piping.
Use larger-diameter pipes to reduce velocity.
Keep suction piping as short and straight as possible.
A well-designed suction pipeline ensures smooth water flow into the pump. Here are best practices:
Select suction pipes one or two sizes larger than the pump inlet to reduce velocity and turbulence.
Avoid undersized pipes that increase friction losses.
Install at least 10 pipe diameters of straight pipe before the suction flange.
This allows water to enter the pump uniformly, preventing turbulence and cavitation.
Avoid placing elbows directly at the pump suction.
If unavoidable, use long-radius elbows to reduce flow disturbance.
When reducing pipe size at the pump inlet:
Install eccentric reducers with the flat side on top to prevent air pockets from forming.
A fire pump is only as good as its water supply. Poor suction conditions often occur when the pump draws from inadequate or unstable water sources.
Municipal Water Supply: Stable and consistent pressure
Fire Water Tanks: Maintain required minimum water levels
Reservoirs or Lakes: Ensure suction strainers are clean and properly submerged
Maintain at least 1.5 times the suction pipe diameter below the water surface to prevent vortex formation.
Use anti-vortex plates if necessary to stabilize suction flow.
Cavitation occurs when water pressure at the pump inlet drops below its vapor pressure, forming vapor bubbles that collapse and damage impellers.
Unusual pump noise (grinding or rattling)
Excessive vibration
Reduced pump performance
Pitting damage on impellers
Increase suction pipe diameter to reduce velocity
Ensure proper NPSHa
Maintain adequate water levels
Reduce pipe bends and fittings that cause turbulence
Even high-quality fire pumps can fail due to improper suction installation. Watch out for:
Installing elbows immediately at the pump suction
Using undersized suction pipes
Placing pumps too far above the water source
Failing to vent trapped air from piping
Installing strainers that are too fine, restricting water flow
Improving suction conditions isn’t only about design; maintenance plays an equally important role.
Check for leaks, corrosion, or obstructions.
Ensure that all valves are fully open and functional.
Measure suction and discharge pressures regularly.
Track NPSH levels to ensure they remain within recommended limits.
Remove debris frequently to avoid suction blockages.
Ensure anti-vortex plates remain intact and clean.
Use flow-straightening vanes inside suction pipes to stabilize turbulence in complex layouts.
Install pressure gauges at the suction inlet to monitor real-time conditions.
Use variable frequency drives (VFDs) on jockey pumps to stabilize suction pressures.
When dealing with multiple pumps, ensure proper header design to balance flow evenly.
Improving fire pump suction conditions is essential for ensuring system reliability, preventing cavitation, and maintaining NFPA 20 compliance. By following best practices—such as optimizing suction piping design, maintaining sufficient NPSH, ensuring a stable water source, and conducting regular maintenance—you can significantly enhance the performance and longevity of your fire pump system.
