Regarding fire protection systems, every component plays a role in ensuring reliable performance during an emergency. Fire pumps are at the heart of these systems, providing the pressure and flow needed to supply water to sprinklers and hydrants when demand surges. However, one critical element that often receives less attention than it deserves is the fire pump foundation.
The strength, design, and installation of the foundation directly influence pump alignment, vibration control, and long-term reliability. Inadequate foundations can compromise the entire fire protection system, creating hidden risks that only reveal themselves during a fire emergency.
In this article, we will explore why fire pump foundation strength matters, the consequences of weak or improperly designed foundations, and best practices for ensuring compliance and reliability.

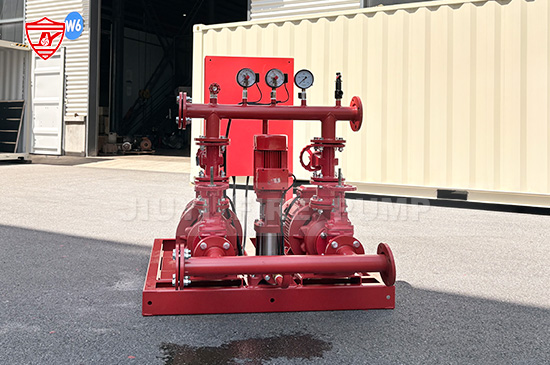

A fire pump foundation is more than just a base slab—it is the structural platform that supports the fire pump, driver (electric motor or diesel engine), and controller assembly. The foundation serves several essential functions:
Stability and Support
The foundation must bear the static weight of the pump and motor while resisting the dynamic forces generated during operation.
Alignment Preservation
Fire pumps and drivers are carefully aligned during installation. A strong, rigid foundation ensures this alignment is maintained over time, minimizing shaft stress and bearing wear.
Vibration Control
Vibrations from the pump and motor can cause loosening of components, increased noise, and reduced efficiency. A solid foundation absorbs and dissipates these forces, protecting the pump.
Longevity and Maintenance
By keeping the pump stable and aligned, the foundation reduces maintenance requirements and extends the equipment’s operational lifespan.
A poorly designed or constructed foundation may not show problems immediately. However, over time, its deficiencies can create significant safety and operational risks. Some of the most common issues include:
If the foundation shifts or settles, the alignment between the pump shaft and driver shaft will be disturbed. Even minor misalignment increases wear on couplings, bearings, and seals, leading to premature failures.
Without sufficient mass and rigidity, the foundation cannot dampen vibrations effectively. This not only causes mechanical wear but can also lead to structural cracks and noise problems.
Misalignment and vibration eventually impact hydraulic performance. Operators may notice reduced efficiency, lower flow rates, or erratic pressure during testing.
Foundation issues often translate into higher repair costs. Bearings, seals, and couplings wear faster, requiring frequent replacements. In extreme cases, pumps may need complete reinstallation.
The most serious consequence of a weak foundation is reduced reliability during an actual fire. A pump that fails to perform at full capacity could compromise the entire building’s fire protection strategy.
The NFPA 20 Standard for the Installation of Stationary Fire Pumps for Fire Protection provides specific guidelines on foundation design. Some of the key recommendations include:
Mass Requirement: The foundation should weigh at least three times as much as the pump and driver assembly. This mass ensures stability and vibration control.
Reinforced Concrete: Foundations should be made of reinforced concrete with a smooth, level surface for proper grout placement.
Anchor Bolts: Properly sized and embedded anchor bolts must be positioned to secure the base plate.
Grouting: Non-shrink grout should be used between the base plate and foundation to eliminate voids and ensure full contact.
Curing Period: The concrete should be allowed to cure fully before pump installation to avoid settling and cracks.
Following NFPA 20 ensures that the fire pump foundation supports not only the physical weight but also the operational demands of the system.
To achieve a strong, reliable fire pump foundation, engineers, contractors, and facility managers should keep the following best practices in mind:
The foundation should be sized according to the weight and size of the pump package. As a rule, follow the NFPA 20 requirement of at least three times the equipment weight.
Use high-quality reinforced concrete with appropriate compressive strength. Reinforcement prevents cracking and improves load-bearing capacity.
After installing the pump and base plate, fill all gaps with non-shrink grout. This ensures continuous contact, improves rigidity, and prevents movement during operation.
The top of the foundation must be level to maintain alignment. Uneven foundations can cause angular misalignment, which accelerates wear.
Allow adequate curing time for concrete before installing heavy equipment. Premature loading can cause settling or cracks that compromise stability.
Anchor bolts should be carefully positioned and fully embedded to prevent loosening. Bolts that are too short or misaligned will weaken the connection.
Foundations should be inspected periodically for cracks, settlement, or signs of vibration-related stress. Early detection allows for corrective measures before major failures occur.
It is easy to overlook the foundation when focusing on high-performance pumps, engines, and controllers. However, without a solid foundation, even the most advanced fire pump system is at risk. The foundation ensures the fire pump operates as designed, delivering water at the required pressure and flow rate during a fire emergency.
Inadequate foundations do not just reduce efficiency—they create life safety risks. If a fire pump fails when needed most, it can jeopardize lives, property, and compliance with safety codes.
The strength of a fire pump foundation is not just an engineering detail—it is a cornerstone of system reliability. A properly designed and installed foundation ensures:
Accurate alignment between pump and driver
Reduced vibration and noise
Lower maintenance costs
Compliance with NFPA 20 standards
Long-term performance and safety reliability
For fire protection professionals, facility managers, and contractors, investing in a strong fire pump foundation is investing in the security of the entire building and its occupants.
At Better Technology Group, we emphasize the importance of foundation design in every fire pump project. By adhering to best practices and international standards, we help ensure that fire protection systems perform reliably when lives depend on them.
