Selecting the right fire pump controller is critical for the reliable operation and compliance of your vertical turbine fire pump system. A fire pump controller manages the pump’s startup, operation, and safety features, ensuring your fire protection system activates immediately and safely during an emergency.

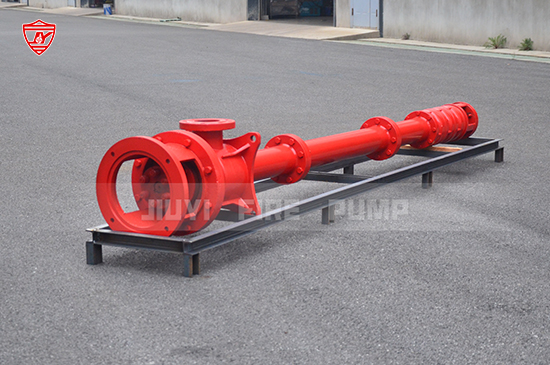

A vertical turbine fire pump is often installed in underground or wet well applications where water is drawn from a reservoir or open body of water. The fire pump controller acts as the brain of the system by detecting pressure drops in the fire sprinkler system and starting the pump accordingly. The correct controller ensures:
Compliance with NFPA 20: National Fire Protection Association standards require specific controller features and performance levels for fire pump safety.
UL Listing: Controllers should be UL listed for quality and safety assurance.
Proper Integration: Controllers must match the pump type and power source (electric or diesel) for seamless operation.
Protection Features: Includes alarms, phase failure protection, pump monitoring, and manual override options.
Reliability: Minimizes false starts or failures during emergencies.
Ensure the controller is designed or configurable for vertical turbine fire pumps. These pumps may have unique motor starting requirements, especially for large horsepower motors.
Identify whether your vertical turbine fire pump is electric or diesel-driven. Electric pumps need controllers that manage motor starters (across-the-line, soft starters, or VFD), while diesel pumps require controllers capable of engine starting and monitoring.
Your fire pump controller must meet NFPA 20 standards, including:
Automatic start on pressure drop detection
Manual start/stop capability
Alarm and trouble signal outputs
Phase and voltage monitoring
Look for features such as:
Test Modes: Allowing routine testing without manual intervention.
Remote Monitoring: Connectivity options for building management systems (BMS).
Battery Backup: Ensuring control power during outages.
Alarm Outputs: Audible/visual alarms for faults or pump running conditions.
Since vertical turbine pumps are often outdoors or in wet wells, select a controller with proper NEMA enclosure rating for protection against moisture, dust, and corrosion.
Choose controllers with user-friendly interfaces, clear wiring diagrams, and accessible components for faster installation and routine maintenance.
Selecting the right fire pump controller for your vertical turbine fire pump is essential to guarantee fire safety, system reliability, and code compliance. Partnering with a reputable manufacturer that offers UL listed and NFPA 20 compliant controllers ensures your fire protection system will perform effectively when needed most.
